libioctrl

In this chapter we are going to combine our previous source code into a centeralised directory.

1. Setting up the libioctrl source code:

1. Create a new directory in home called libioctrl:

   Terminal

   $ mkdir -p ~/libioctrl/{src, include}


2. We need to copy the bbb_adc.{c/h} , bbb_gpio.{c/h} and bbb_pwm.{c/h} from the respective directories into two new child directories inside of libioctrl, src and include:

   Terminal: Example

   $ cp bbb_adc/bbb_adc.c ~/libioctrl/src && cp bbb_adc/bbb_adc.h ~/libioctrl/include


   Repeat for each of the other libraries we had made earlier.

3. You should have the following structure:

   Output

   $ ls -l ~/libioctrl/*
   libioctrl/include:
   total 12
   -rw-r--r-- 1 debian debian  685 Apr 14 19:25 bbb_adc.h
   -rw-r--r-- 1 debian debian 2557 Apr 14 20:35 bbb_gpio.h
   -rw-r--r-- 1 debian debian 1636 Apr 14 20:35 bbb_pwm.h

   libioctrl/src:
   total 12
   -rw-r--r-- 1 debian debian 1288 Apr 14 19:24 bbb_adc.c
   -rw-r--r-- 1 debian debian 3559 Apr 14 19:46 bbb_gpio.c
   -rw-r--r-- 1 debian debian 2490 Apr 14 19:24 bbb_pwm.c


4. Now make a new libioctrl.h inside the include/ and fill the following:

   Code: include/libioctrl.h

   #ifndef LIBIOCTRL_H
   #define LIBIOCTRL_H

   #include "bbb_gpio.h"
   #include "bbb_pwm.h"
   #include "bbb_adc.h"

   #endif // LIBIOCTRL_H


5. Replace the #include "bbb_adc.h", #include "bbb_gpio.h" and #include "bbb_pwm.h" inside the respective .c files:

   Code: src/bbb_adc.c

   # include "../include/bbb_adc.h"


   Repeat for the other .c files

6. Next we need to update some variable names to deal with the issue of multiple declarations when compiling. Inside include/bbb_pwm.h change the following, we are only appending PWM to PinMap:

   Old:

   Suppressed code [15 lines]...

   // Structure to hold PWM mapping information
   typedef struct {
       char physical_pin[10];  // Physical pin on the BeagleBone Black (e.g., "P9_16")
       char pwm_chip_channel[10]; // PWM chip and channel (e.g., "4:1")
   } PinMap;
   ...
   // Define the pin_map array with physical pins and their corresponding PWM chip:channel
   PinMap phy_pin_map[] = {
       {"P9_16", "4:1"},  // eHRPWM1B
       {"P9_14", "4:0"},  // eHRPWM1A
       {"P9_21", "1:1"},  // eHRPWM0B
       {"P9_22", "1:0"},  // eHRPWM0A
       {"P8_13", "7:1"},  // eHRPWM2B
       {"P8_19", "7:0"},  // eHRPWM2A
       {"P9_28", "3:0"},  // eCAP1
       {"P9_42", "0:0"}  // eCAP0
   };



   New:

   Suppressed code [15 lines]...

   // Structure to hold PWM mapping information
   typedef struct {
       char physical_pin[10];  // Physical pin on the BeagleBone Black (e.g., "P9_16")
       char pwm_chip_channel[10]; // PWM chip and channel (e.g., "4:1")
   } PWMPinMap;
   ...
   // Define the pin_map array with physical pins and their corresponding PWM chip:channel
   PWMPinMap phy_pin_map[] = {
       {"P9_16", "4:1"},  // eHRPWM1B
       {"P9_14", "4:0"},  // eHRPWM1A
       {"P9_21", "1:1"},  // eHRPWM0B
       {"P9_22", "1:0"},  // eHRPWM0A
       {"P8_13", "7:1"},  // eHRPWM2B
       {"P8_19", "7:0"},  // eHRPWM2A
       {"P9_28", "3:0"},  // eCAP1
       {"P9_42", "0:0"}  // eCAP0
   };


   Update the src/bbb_pwm.c to reference the PWMPinMap inside sizeof(...):

   Code

   for (int i = 0; i < sizeof(phy_pin_map) / sizeof(PWMPinMap); i++) {
       if (strcmp(phy_pin_map[i].physical_pin, pin_name) == 0) {
           // Parse the pwmchip and pwm channel
           sscanf(phy_pin_map[i].pwm_chip_channel, "%[^:]:%s", pwm_channel, pwm_chip);
       }
   }


7. Next we need to update some variable names to deal with the issue of multiple declarations when compiling. Inside include/bbb_gpio.h change the following, we are only appending GPIO to PinMap and gpio_ to pin_map:

   Old

   Suppressed code [10 lines]...

   // Define a simple mapping array for P8 and P9 pin names to GPIO numbers
   typedef struct {
       char pin_name[6];
       unsigned int gpio_number;
   } PinMap;
   ...
   // Static array to map pin names to GPIO numbers
   PinMap gpio_pin_map[] = {
       {"P8_31", 10}, {"P8_32", 11}, {"P9_31", 110}, {"P9_29", 111},
       ...
   }


   New

   Suppressed code [15 lines]...

   // Define a simple mapping array for P8 and P9 pin names to GPIO numbers
   typedef struct {
       char pin_name[6];
       unsigned int gpio_number;
   } GPIOPinMap;
   ...
   // Static array to map pin names to GPIO numbers
   GPIOPinMap gpio_pin_map[] = {
       {"P8_31", 10}, {"P8_32", 11}, {"P9_31", 110}, {"P9_29", 111},
       ...
   }


   Update the src/bbb_gpio.c to reference the gpio_pin_map and GPIOPinMap inside sizeof(...), remember to replace all the instances of pin_map in the below function to gpio_pin_map:

   Code

   // Function to find GPIO number from pin name
   int find_gpio_number(const char *pin_name) {
       for (int i = 0; i < sizeof(gpio_pin_map) / sizeof(GPIOPinMap); i++) {
           if (strcmp(gpio_pin_map[i].pin_name, pin_name) == 0) {
               return gpio_pin_map[i].gpio_number;
           }
       }
       return -1;  // Return -1 if the pin is not found
   }


2: Make with a Makefile

8. Build a Makefile and fill with the following:

   Suppressed code [55 lines]...

   # Compiler and flags
   CC = gcc
   CFLAGS = -Wall -Werror -fPIC -I./include  # Include headers
   AR = ar
   ARFLAGS = rcs
   PREFIX = /usr
   INCLUDEDIR = $(PREFIX)/include
   LIBDIR = $(PREFIX)/lib
   LDLIBS = -lgpiod

   # Directories
   SRCDIR = ./src
   OBJDIR = ./obj

   # Library names
   TARGET_STATIC = libioctrl.a
   TARGET_SHARED = libioctrl.so

   # Source files for each component
   SRC = $(SRCDIR)/bbb_gpio.c $(SRCDIR)/bbb_pwm.c $(SRCDIR)/bbb_adc.c
   OBJ = $(patsubst $(SRCDIR)/%.c, $(OBJDIR)/%.o, $(SRC))

   # Default target: Build both libraries
   all: $(TARGET_STATIC) $(TARGET_SHARED)

   # Compile source files into object files
   $(OBJDIR)/%.o: $(SRCDIR)/%.c
           @mkdir -p $(OBJDIR)
           $(CC) $(CFLAGS) -c $< -o $@

   # Create the static library
   $(TARGET_STATIC): $(OBJ)
           $(AR) $(ARFLAGS) $@ $(OBJ)

   # Create the shared library
   $(TARGET_SHARED): $(OBJ)
           $(CC) -shared -o $@ $(OBJ) $(LDLIBS)

   # Clean up build artifacts
   clean:
           rm -rf $(OBJDIR) $(TARGET_STATIC) $(TARGET_SHARED)

   # Install libraries and headers
   install: $(TARGET_STATIC) $(TARGET_SHARED)
           sudo cp include/bbb_gpio.h include/bbb_pwm.h include/bbb_adc.h include/libioctrl.h $(INCLUDEDIR)/
           sudo cp $(TARGET_STATIC) $(TARGET_SHARED) $(LIBDIR)/
           sudo ldconfig

   # Uninstall libraries and headers
   uninstall:
           sudo rm -f $(INCLUDEDIR)/gpio.h $(INCLUDEDIR)/pwm.h $(INCLUDEDIR)/adc.h $(INCLUDEDIR)/libioctrl.h
           sudo rm -f $(LIBDIR)/$(TARGET_STATIC) $(LIBDIR)/$(TARGET_SHARED)
           sudo ldconfig

   # Phony targets
   .PHONY: all clean install uninstall

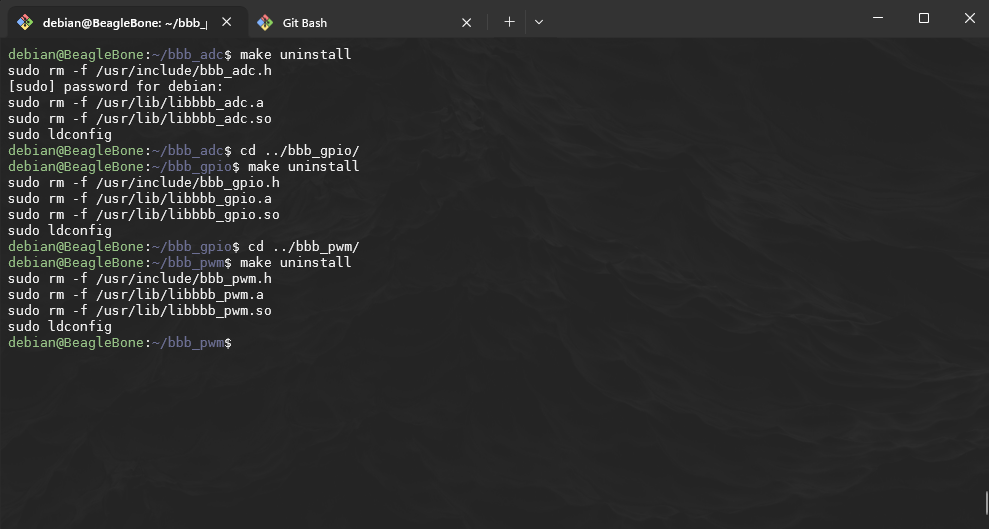

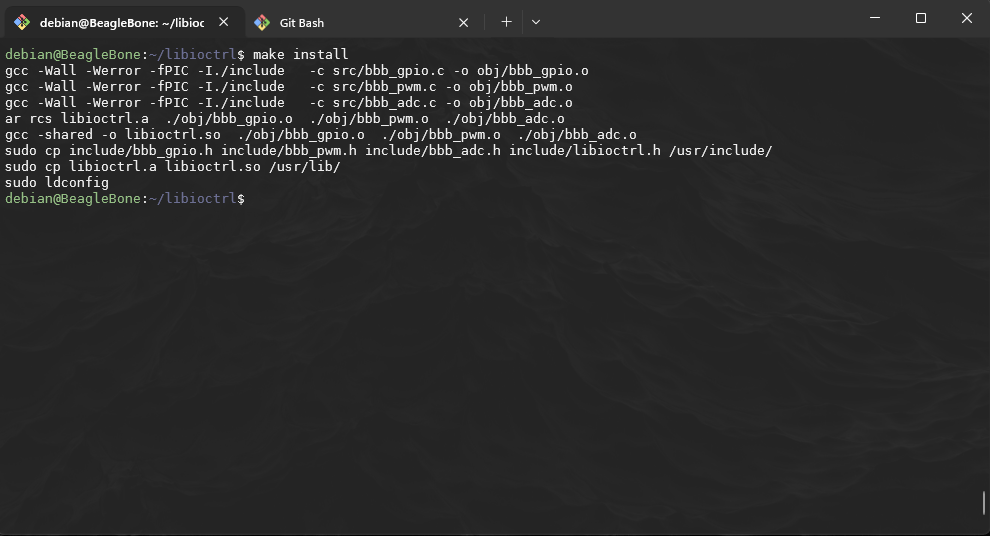

9. Go back to the libioctrl and run make install:

   Output



   Breaking down the output of make install

   Object file compilation:

   • The gcc command is compiling each source file (src/bbb_gpio.c, src/bbb_pwm.c, and src/bbb_adc.c) into object files (obj/bbb_gpio.o, obj/bbb_pwm.o, and obj/bbb_adc.o), and it uses the appropriate flags (-Wall, -Werror, -fPIC, -I./include).

     gcc -Wall -Werror -fPIC -I./include   -c src/bbb_gpio.c -o obj/bbb_gpio.o
     gcc -Wall -Werror -fPIC -I./include   -c src/bbb_pwm.c -o obj/bbb_pwm.o
     gcc -Wall -Werror -fPIC -I./include   -c src/bbb_adc.c -o obj/bbb_adc.o


   Creating the static library:

   • The ar rcs command is creating the static library libioctrl.a by combining the compiled object files bbb_gpio.o, bbb_pwm.o, and bbb_adc.o.

     ar rcs libioctrl.a  ./obj/bbb_gpio.o  ./obj/bbb_pwm.o  ./obj/bbb_adc.o


   Creating the shared library:

   • The gcc -shared command is creating the shared library libioctrl.so by linking the same object files bbb_gpio.o, bbb_pwm.o, and bbb_adc.o

     gcc -shared -o libioctrl.so  ./obj/bbb_gpio.o  ./obj/bbb_pwm.o  ./obj/bbb_adc.o


   System wide availability:

   • This command copies the header files (bbb_gpio.h, bbb_pwm.h, bbb_adc.h, and libioctrl.h) to the system's /usr/include/ directory. This makes the header files available system-wide, allowing programs to include these headers when building applications that use the library.

     sudo cp include/bbb_gpio.h include/bbb_pwm.h include/bbb_adc.h include/libioctrl.h /usr/include/


   • This command copies the static (libioctrl.a) and shared (libioctrl.so) versions of the libioctrl library to /usr/lib/, which is a standard system library directory. This allows programs to link against the library when building.

     sudo cp libioctrl.a libioctrl.so /usr/lib/:


   • This command updates the system's dynamic linker cache. It ensures that the system is aware of the newly installed shared libraries (e.g., libioctrl.so) so that applications can find and use the shared library at runtime

     sudo ldconfig


Using our new library

10. Update any of the following tests we ran before; adc2pwm.c, adc_continous_read, adc_read, blink and pwm_test:

    In this example I will update the adc_read.c headers and part of the Makefile:

    adc_read.c

    Code

    #include <libioctrl.h> # originally bbb_adc.h
    #include <stdio.h>
    #include <unistd.h>
    ...


    Makefile

    Code

    ...
    # Library to link against
    LIBS = -lioctrl # originally, lbbb_adc
    ...


    You should repeat for the others, and remember to make clean before running make for each of these programs to remove original exe.

Fork and Clone Libioctrl library

11. Incase it doesn't work as intended, you can fork and download the libioctrl library from GitHub:

    • https://github.com/CompEng0001/bb.black_pin_library

12. Clone the forked repo: git clone git@github.com:YOURUSERNAME/bb.black_pin_library

13. cd to the parent directory of where you cloned the repo using shell copy command, scp:

    Terminal

    scp -r /path/to/bb.black_pin_library/ debian@192.168.7.2:libioctrl

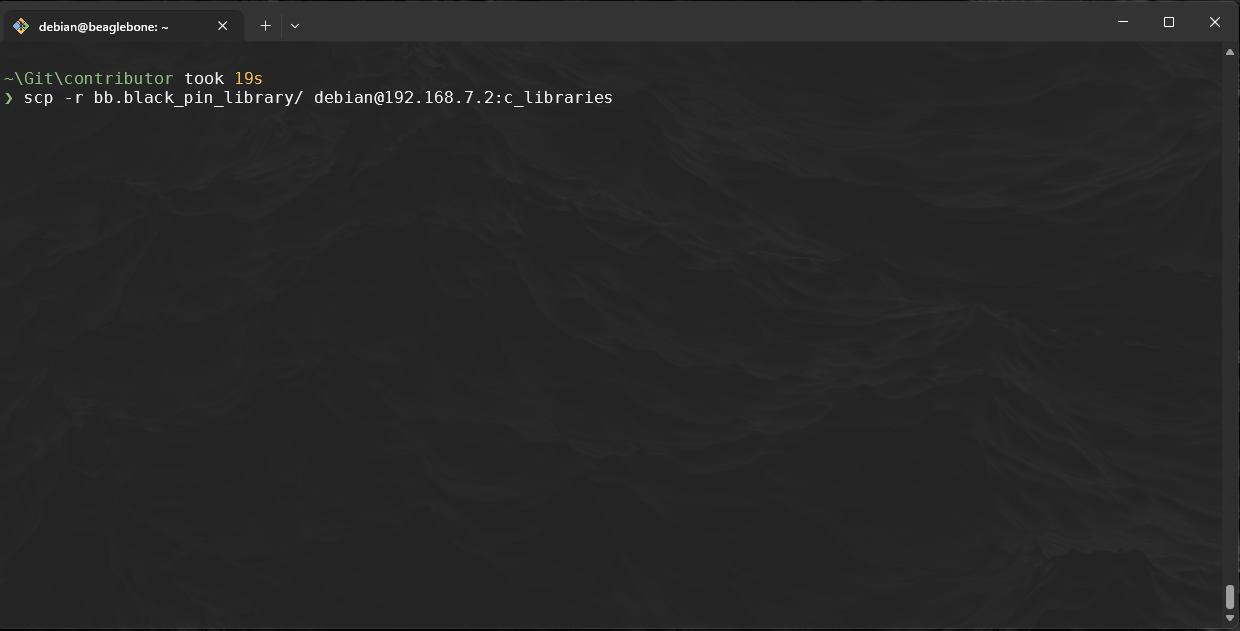

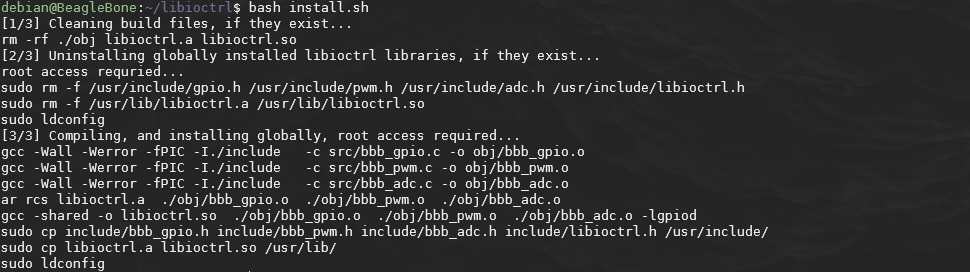

14. You should then be able to install the library via the bash install.sh script within the repo:



    Error

    • If you get:

      debian@BeagleBone:~/libioctrl$ bash install.sh
      install.sh: line 2: $'\r': command not found


    • You need to run

      dos2unix install.sh


    • Then run this again:

      bash install.sh


15. You will also see that there is an examples_C folder with all the examples complete.
