Scripting the Setup

[!IMPORTANT] Ensure you have finished the follwoing labs:

Now that you have some experience calling the following network commands:

  • iwd
  • iptables
  • hostapd
  • dnsmasq
  • ip
  • iw

and have appreciation for doing things in the correct order.

We are going to create script to automate our access point, routing and isolation.

2: Define the modes

ModehostapddnsmasqIPv4 fwdNAT wlan1→wlan0NAT eth0→wlan0eth0↔wlan1
ap-only✓✓✓✕✕(either)
hotspot-inet✓✓✓✓✕(either)
router-inet✓✓✓✓✓✓
router-inet-isolated✓✓✓✓✓✕
wired-inet (no AP)✕✓*✓✕✓n/a

* dnsmasq only if you want to DHCP on eth0.

3: Setting dnsmasq and hostapd *.conf

  1. Confirm that the below is in the following file, sudo vim /etc/hostapd/hostapd.conf, if not, then reproduce:

    Code: /etc/hostapd/hostapd.conf

    interface=wlan1
driver=nl80211
ssid=MyHotspot
hw_mode=g
channel=11
wmm_enabled=0

auth_algs=1
wpa=2
wpa_passphrase=12345678
wpa_key_mgmt=WPA-PSK
rsn_pairwise=CCMP
    • where you are using ssid=MyHotspot append the last part with daymonth of birth ie 0112 (01 December)

  2. Confirm that the below is in the following file, sudo vim /etc/dnsmasq.d/hotspot.conf, if not, then reproduce:

    Code: /etc/dnsmasq.d/hotspot.conf

    interface=wlan1
dhcp-range=192.168.10.50,192.168.10.150,12h

interface=eth0
dhcp-range=192.168.20.50,192.168.20.150,12h

Settng up the script

  1. Create the following directory and script; mkdir ~/scripts && touch ~/scripts/netowrking.sh

  2. Modify the file by following the steps below, it is important you know what the script is doing so read the explanations.

  3. Header, strict mode, and configuration

    Code

    #!/usr/bin/env bash
set -euo pipefail

# Interfaces
UPLINK_IF="wlan0"
AP_IF="wlan1"
LAN_IF="eth0"

# Subnets (adjust for your lab)
AP_SUBNET="192.168.50.0/24"
AP_GW_IP="192.168.50.1/24"

LAN_SUBNET="192.168.60.0/24"
LAN_GW_IP="192.168.60.1/24"

# Services
HOSTAPD_CONF="/etc/hostapd/hostapd-wlan1.conf"
DNSMASQ_CONF="/etc/dnsmasq.d/lab-router.conf"

# iptables chain tag (so you can cleanly remove rules)
TAG="ELEE1157"

    Explanation

    Sets Bash strict mode (set -euo pipefail) to fail fast on errors, undefined variables, and pipeline failures. The interface and subnet variables centralise the lab topology so modes can reuse them.

    Using CIDR for gateway IPs (e.g. 192.168.50.1/24) avoids the common "double prefix" bug where code appends /24 twice.

  4. Small utilities: error handling and root check

    Code

    die() { echo "error: $*" >&2; exit 1; }
need_root() { [[ $EUID -eq 0 ]] || die "run as root"; }

# ---------- sysctl ----------

    Explanation

    die() provides a consistent fatal error path. need_root() enforces root execution because the script configures interfaces, sysctl, systemd units, and iptables.

  5. Kernel forwarding toggle (sysctl)

    Code

    enable_forwarding() {
  sysctl -w net.ipv4.ip_forward=1 >/dev/null
}

# ---------- addressing ----------

    Explanation

    Enables IPv4 forwarding (net.ipv4.ip_forward=1) so Linux will route packets between interfaces. Without this, forwarding rules and NAT will not provide connectivity between subnets.

  6. Interface addressing helper

    Code

    ensure_addr() {
  local iface="$1" ip="$2"
  ip link set dev "$iface" up
  if ! ip -4 addr show dev "$iface" | grep -q " ${ip}/"; then
    # remove any previous address in that subnet to avoid duplicates
    # (simple approach: flush IPv4 on that interface; ok for lab routers)
    ip -4 addr flush dev "$iface"
    ip addr add "${ip}" dev "$iface"
  fi
}

# ---------- services ----------

    Explanation

    Brings the interface up and assigns the gateway address. The function is idempotent: if the expected CIDR is already present, it does nothing; otherwise it flushes IPv4 addresses on that interface and applies the configured address.

    In a teaching lab, flushing interface IPv4 state makes reruns predictable and avoids clashes with previous lab attempts.

  7. Service lifecycle (dnsmasq + hostapd)

    Code

    start_services() {
  systemctl enable --now dnsmasq
  if ! systemctl is-enabled hostapd 2>/dev/null | grep -q masked; then
    echo "hostapd is masked; unmasking..."
    systemctl unmask hostapd.service
  fi
  systemctl enable --now hostapd
}

stop_services() {
  systemctl disable --now hostapd || true
  systemctl disable --now dnsmasq || true
}

# ---------- iptables helpers ----------

    Explanation

    Starts DHCP/DNS (dnsmasq) and the AP daemon (hostapd). The hostapd unmask step is necessary on images where the unit was intentionally masked (a symlink to /dev/null).

    stop_services() disables and stops both services during teardown; errors are ignored to keep down idempotent.

  8. iptables wrapper + teardown

    Code

    ipt() { iptables -w "$@"; }

flush_tagged_rules() {
  # Remove only the jumps we actually install, then delete our chains.
  iptables -w -t filter -D FORWARD -j "${TAG}_FILTER" 2>/dev/null || true
  iptables -w -t nat    -D POSTROUTING -j "${TAG}_NAT" 2>/dev/null || true

  iptables -w -t filter -F "${TAG}_FILTER" 2>/dev/null || true
  iptables -w -t filter -X "${TAG}_FILTER" 2>/dev/null || true

  iptables -w -t nat -F "${TAG}_NAT" 2>/dev/null || true
  iptables -w -t nat -X "${TAG}_NAT" 2>/dev/null || true
}

    Explanation

    Defines a small ipt() wrapper to consistently use iptables -w (waits for the xtables lock).

    flush_tagged_rules() removes only the jump rules the script creates, then flushes and deletes the tagged chains. This prevents “dangling” lab rules from persisting between runs.

  9. iptables chain creation (tagged chains)

    Code

    create_tag_chains() {
  # filter chain
  iptables -w -t filter -N "${TAG}_FILTER" 2>/dev/null || true
  iptables -w -t filter -F "${TAG}_FILTER"
  iptables -w -t filter -C FORWARD -j "${TAG}_FILTER" 2>/dev/null ||     iptables -w -t filter -A FORWARD -j "${TAG}_FILTER"

  # nat chain
  iptables -w -t nat -N "${TAG}_NAT" 2>/dev/null || true
  iptables -w -t nat -F "${TAG}_NAT"
  iptables -w -t nat -C POSTROUTING -j "${TAG}_NAT" 2>/dev/null ||     iptables -w -t nat -A POSTROUTING -j "${TAG}_NAT"
}

allow_established() {
  ipt -t filter -A "${TAG}_FILTER" -m conntrack --ctstate ESTABLISHED,RELATED -j ACCEPT
}

allow_forward() {
  local in_if="$1" out_if="$2"
  ipt -t filter -A "${TAG}_FILTER" -i "$in_if" -o "$out_if" -j ACCEPT
}

deny_forward() {
  local in_if="$1" out_if="$2"
  ipt -t filter -A "${TAG}_FILTER" -i "$in_if" -o "$out_if" -j DROP
}

enable_nat() {
  local src_subnet="$1" out_if="$2"
  ipt -t nat -A "${TAG}_NAT" -s "$src_subnet" -o "$out_if" -j MASQUERADE
}

# ---------- policy builders ----------

    Explanation

    Creates two dedicated chains: one in the filter table for forwarding policy and one in the nat table for masquerade rules. The script then installs a single jump from the base chain (FORWARD / POSTROUTING) into the tagged chain.

    This pattern makes teardown deterministic: remove the jump, flush the custom chain, delete it.

  10. Firewall/NAT primitives

    Code

    allow_established() {
  ipt -t filter -A "${TAG}_FILTER" -m conntrack --ctstate ESTABLISHED,RELATED -j ACCEPT
}

allow_forward() {
  local in_if="$1" out_if="$2"
  ipt -t filter -A "${TAG}_FILTER" -i "$in_if" -o "$out_if" -j ACCEPT
}

deny_forward() {
  local in_if="$1" out_if="$2"
  ipt -t filter -A "${TAG}_FILTER" -i "$in_if" -o "$out_if" -j DROP
}

enable_nat() {
  local src_subnet="$1" out_if="$2"
  ipt -t nat -A "${TAG}_NAT" -s "$src_subnet" -o "$out_if" -j MASQUERADE
}

# ---------- policy builders ----------

    Explanation

    Small, composable primitives:

    • allow_established: permits return traffic for flows we allow out
    • allow_forward / deny_forward: forward policy between interface pairs
    • enable_nat: source NAT (MASQUERADE) for a given subnet out via the uplink

    Keeping these as tiny functions makes it easier for students to map requirements (routing vs isolation vs internet sharing) to specific rules.

  11. Policy builder: routing, isolation, NAT

    Code

    apply_firewall_router() {
  local nat_ap="$1" nat_lan="$2" isolate="$3"

  create_tag_chains
  allow_established

  # Permit uplink return path is handled by ESTABLISHED,RELATED.
  # Allow LAN/AP towards uplink (routing)
  allow_forward "$AP_IF" "$UPLINK_IF"
  allow_forward "$LAN_IF" "$UPLINK_IF"

  # Optionally allow inter-LAN communication
  if [[ "$isolate" == "yes" ]]; then
    deny_forward "$AP_IF" "$LAN_IF"
    deny_forward "$LAN_IF" "$AP_IF"
  else
    allow_forward "$AP_IF" "$LAN_IF"
    allow_forward "$LAN_IF" "$AP_IF"
  fi

  # NAT (internet sharing)
  if [[ "$nat_ap" == "yes" ]]; then
    enable_nat "$AP_SUBNET" "$UPLINK_IF"
  fi
  if [[ "$nat_lan" == "yes" ]]; then
    enable_nat "$LAN_SUBNET" "$UPLINK_IF"
  fi
}

# ---------- modes ----------

    Explanation

    Assembles the firewall for a given mode:

    • always allow ESTABLISHED/RELATED
    • allow AP→uplink and LAN→uplink
    • optionally allow or block AP↔LAN forwarding (isolation)
    • optionally add NAT for AP and/or LAN subnets

    This makes mode behaviour explicit: toggling NAT or isolation becomes a simple boolean choice.

  12. Modes: ap-only / hotspot-inet / router modes

    Code

    mode_ap_only() {
  enable_forwarding
  ensure_addr "$AP_IF" "$AP_GW_IP"
  ensure_addr "$LAN_IF" "$LAN_GW_IP"
  start_services

  flush_tagged_rules
  # routing only inside the box; no NAT; permit/deny AP<->LAN decided by "isolate" flag outside
  apply_firewall_router "no" "no" "no"
}

mode_hotspot_inet() {
  enable_forwarding
  ensure_addr "$AP_IF" "$AP_GW_IP"
  ensure_addr "$LAN_IF" "$LAN_GW_IP"
  start_services

  flush_tagged_rules
  apply_firewall_router "yes" "no" "no"
}

mode_router_inet() {
  enable_forwarding
  ensure_addr "$AP_IF" "$AP_GW_IP"
  ensure_addr "$LAN_IF" "$LAN_GW_IP"
  start_services

  flush_tagged_rules
  apply_firewall_router "yes" "yes" "no"
}

mode_router_inet_isolated() {
  enable_forwarding
  ensure_addr "$AP_IF" "$AP_GW_IP"
  ensure_addr "$LAN_IF" "$LAN_GW_IP"
  start_services

  flush_tagged_rules
  apply_firewall_router "yes" "yes" "yes"
}

    Explanation

    Defines user-facing modes:

    • ap-only: AP + DHCP + routing between AP/LAN (no NAT)
    • hotspot-inet: AP subnet gets NAT out via uplink
    • router-inet: both AP and LAN subnets get NAT out via uplink
    • router-inet-isolated: same as router-inet, but blocks AP↔LAN traffic

    Each mode follows the same sequence: enable forwarding → configure addresses → start services → reset firewall → apply desired policy.

  13. Mode: down (clean teardown)

    Code

    mode_down() {
  stop_services
  flush_tagged_rules
  sysctl -w net.ipv4.ip_forward=0 >/dev/null || true

  # Optionally flush addresses on AP/LAN interfaces to “reset lab”
  ip -4 addr flush dev "$AP_IF" || true
  ip -4 addr flush dev "$LAN_IF" || true
}

    Explanation

    A deterministic teardown:

    • stops services
    • removes tagged iptables rules
    • disables IPv4 forwarding
    • flushes AP/LAN interface IPv4 addresses

    The goal is repeatability: after down, a subsequent ap-only should behave like a first run.

  14. Status and CLI entrypoint

    Code

    status() {
  echo "== interfaces =="
  ip -br addr show dev "$UPLINK_IF" || true
  ip -br addr show dev "$AP_IF" || true
  ip -br addr show dev "$LAN_IF" || true

  echo
  echo "== forwarding =="
  sysctl net.ipv4.ip_forward
  echo
  echo "== services =="
  systemctl --no-pager --full status hostapd 2>/dev/null | sed -n '1,18p' || true
  echo
  systemctl --no-pager --full status dnsmasq 2>/dev/null | sed -n '1,18p' || true
  echo
  echo "== iptables (tagged) =="
  iptables -S | grep "$TAG" || true
  iptables -t nat -S | grep "$TAG" || true
}

usage() {
  cat <<EOF
usage: lab-router <mode>

modes:
  ap-only
  hotspot-inet
  router-inet
  router-inet-isolated
  down
  status
EOF
}

main() {
  need_root

  local mode="${1:-}"
  case "$mode" in
    ap-only) mode_ap_only ;;
    hotspot-inet) mode_hotspot_inet ;;
    router-inet) mode_router_inet ;;
    router-inet-isolated) mode_router_inet_isolated ;;
    down) mode_down ;;
    status) status ;;
    *) usage; exit 2 ;;
  esac
}

main "$@"

    Explanation

    status() prints a compact snapshot: interface addressing, forwarding state, service status, and the tagged iptables rules currently installed.

    main() is the dispatcher: validates root, parses the mode, and invokes the corresponding function. This is the only place user input affects behaviour.

Testing the script

  1. Run the following command first:

    Terminal

    bash script/networking.sh

    Error

    error: run as root
    • A quick reminder that we need to be root (sudo) when we run this script.

  2. Now we can check to see if the usage appears:

    Terminal

    sudo bash script/networking.sh

    Output

    usage: networking <mode>

modes:
    ap-only
    hotspot-inet
    router-inet
    router-inet-isolated
    down
    status

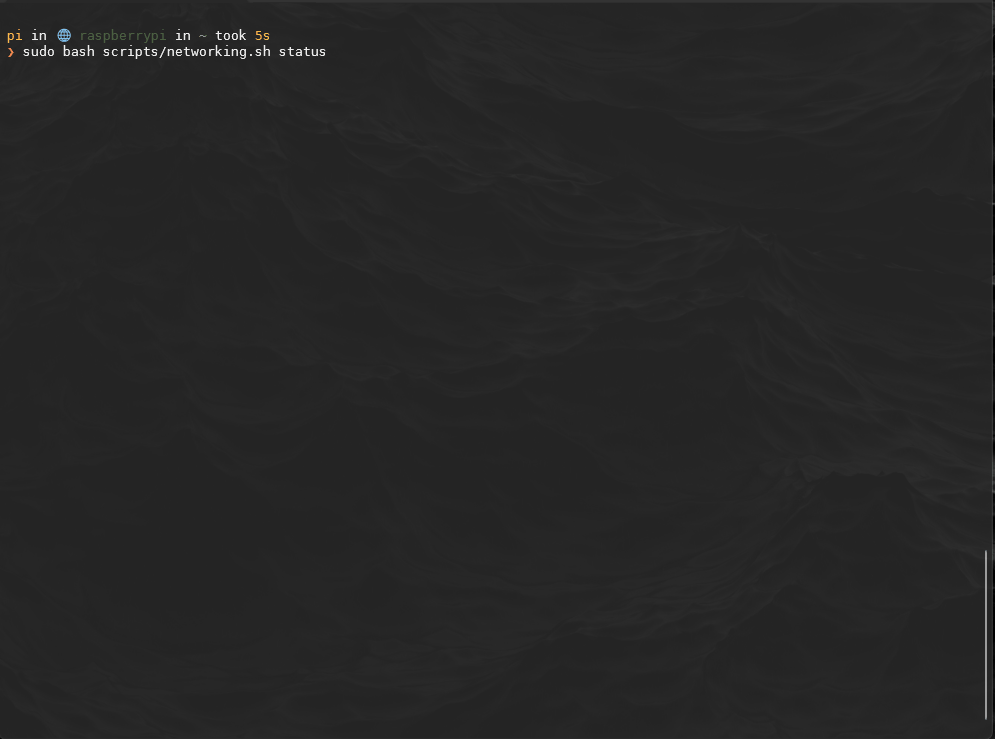

  3. Run the status mode:

    Terminal

    sudo bash script/networking.sh status

    Output

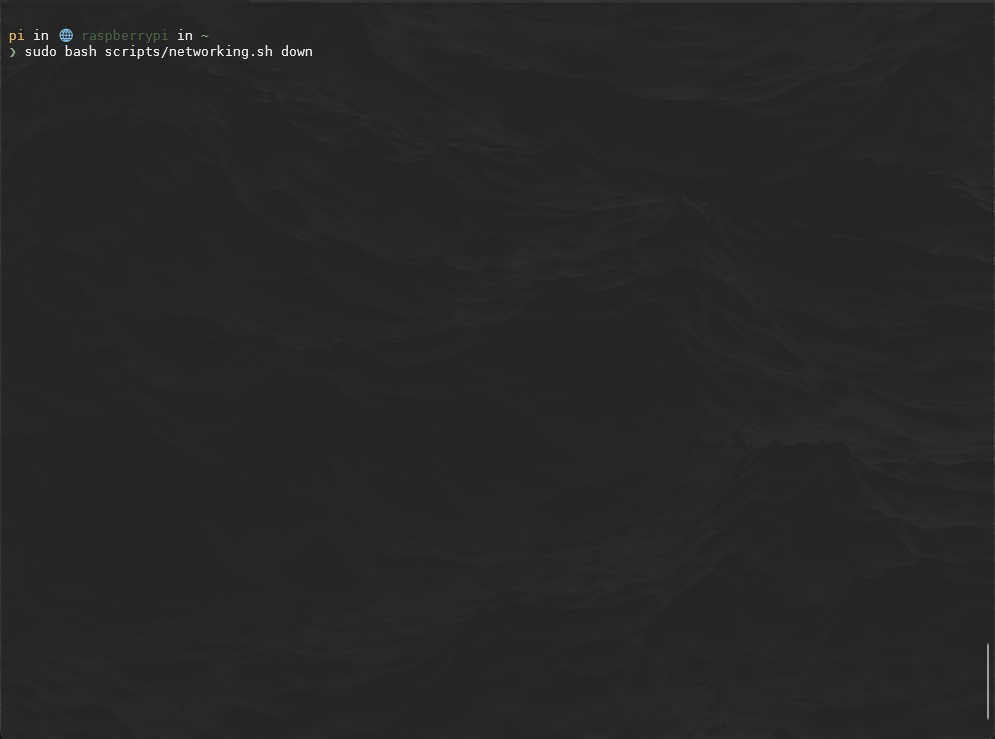

  4. Now let's bring down the any prexisiting configuration:

    Terminal

    sudo bash script/networking.sh down

    Output

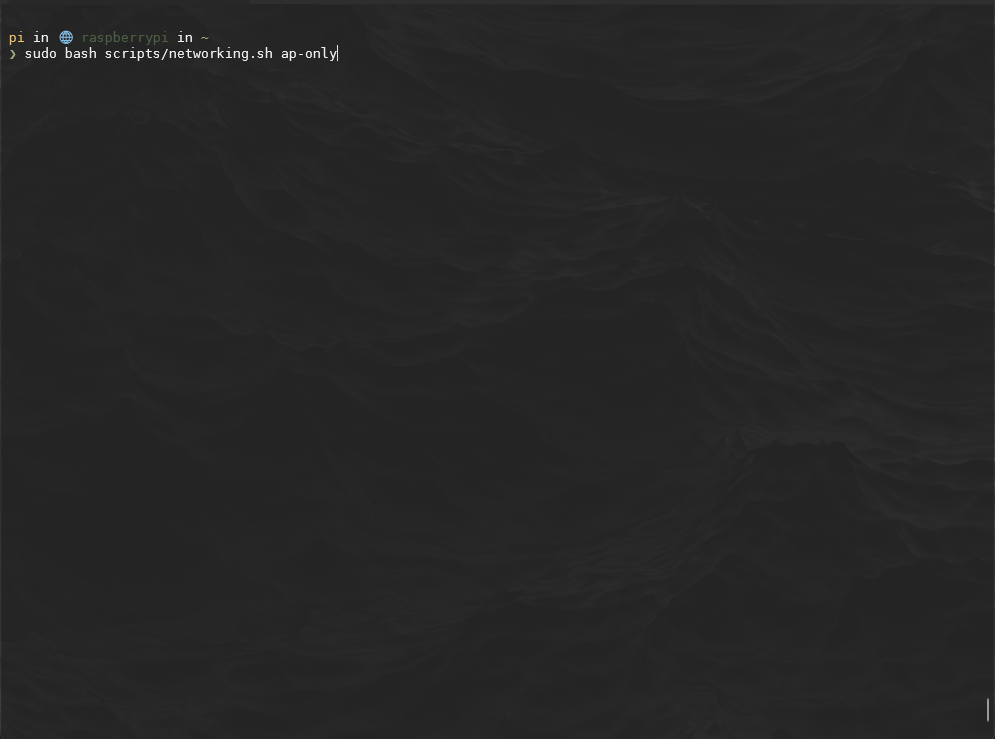

  5. We can now start the ap-only, remember this is does only allows devices to connect to our Access point on wlan1 and eth0. Also, note that there is no internet access with this mode or inter-communication.

    Terminal

    sudo bash script/networking.sh ap-only

    Output

  6. Test your setup by connecting a phone or another pi or laptop to your network, remember you will have no internet.

  7. Re-run the status command

    Terminal

    sudo bash script/networking.sh status

    Output

  8. Now we will bring down the network and reset everything again, down

    Terminal

    sudo bash script/networking.sh down

  9. You can confirm we status and should see that iptables has gone back to default

    Terminal

    sudo bash script/networking.sh status

    Output

  10. Now we can run the hotspot-inet mode for uplink passthrough (internet)

    Terminal

    sudo bash script/networking.sh hotspot-inet

  11. Reconnect with your previous device(s), and you should have access to the internet now.

  12. So now we are going to bring it down again, .

    Terminal

    sudo bash script/networking.sh down

  13. Then try inet isolation, by stopping eth0 connected devices communicating with wlan1 devices

    Terminal

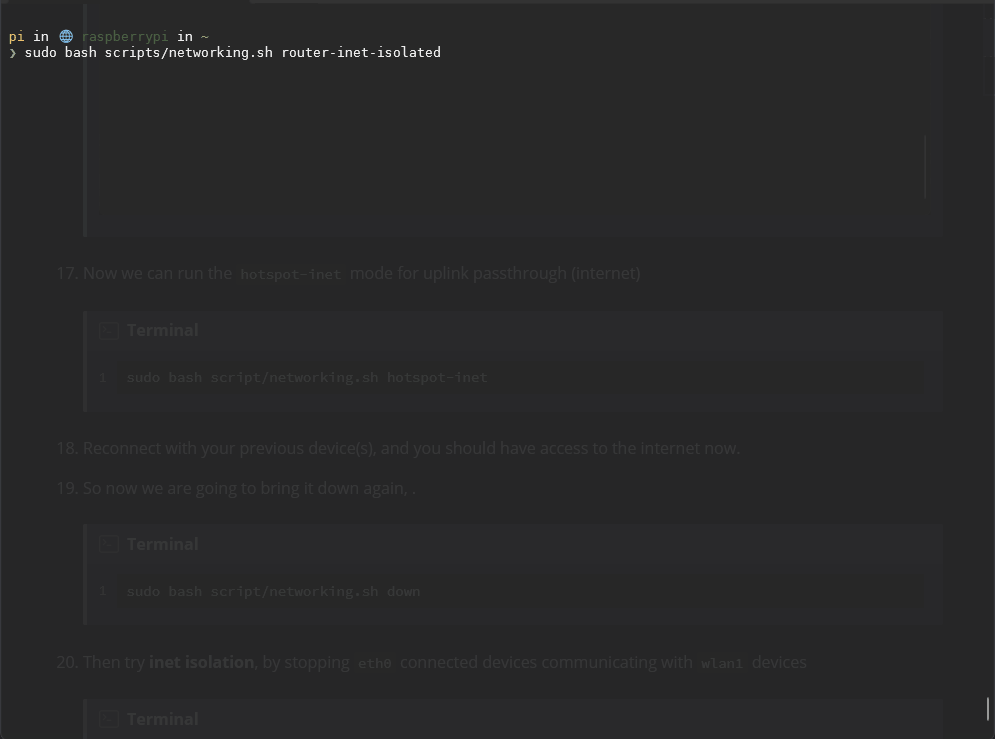

    sudo bash script/networking.sh router-inet-isolated

    Output

Practice

Now that you have the script and it is working, you can quickly bring up or bring down your network settings for the coursework, remember to change ip networks so you can connect to each other.

Full Script

Full code: scripts/networking.sh


#!/usr/bin/env bash
set -euo pipefail

# Interfaces
UPLINK_IF="wlan0"
AP_IF="wlan1"
LAN_IF="eth0"

# Subnets (adjust for your lab)
AP_SUBNET="192.168.50.0/24"
AP_GW_IP="192.168.50.1/24"

LAN_SUBNET="192.168.60.0/24"
LAN_GW_IP="192.168.60.1/24"

# Services
HOSTAPD_CONF="/etc/hostapd/hostapd-wlan1.conf"
DNSMASQ_CONF="/etc/dnsmasq.d/lab-router.conf"

# iptables chain tag (so you can cleanly remove rules)
TAG="ELEE1157"

die() { echo "error: $*" >&2; exit 1; }
need_root() { [[ $EUID -eq 0 ]] || die "run as root"; }

# ---------- sysctl ----------
enable_forwarding() {
  sysctl -w net.ipv4.ip_forward=1 >/dev/null
}

# ---------- addressing ----------
ensure_addr() {
  local iface="$1" ip="$2"
  ip link set dev "$iface" up
  if ! ip -4 addr show dev "$iface" | grep -q " ${ip}/"; then
    # remove any previous address in that subnet to avoid duplicates
    # (simple approach: flush IPv4 on that interface; ok for lab routers)
    ip -4 addr flush dev "$iface"
    ip addr add "${ip}" dev "$iface"
  fi
}

# ---------- services ----------
start_services() {
  systemctl enable --now dnsmasq
  if ! systemctl is-enabled hostapd 2>/dev/null | grep -q masked; then
    echo "hostapd is masked; unmasking..."
    systemctl unmask hostapd.service
  fi
  systemctl enable --now hostapd
}

stop_services() {
  systemctl disable --now hostapd || true
  systemctl disable --now dnsmasq || true
}

# ---------- iptables helpers ----------
ipt() { iptables -w "$@"; }

flush_tagged_rules() {
  # Remove only the jumps we actually install, then delete our chains.
  iptables -w -t filter -D FORWARD -j "${TAG}_FILTER" 2>/dev/null || true
  iptables -w -t nat    -D POSTROUTING -j "${TAG}_NAT" 2>/dev/null || true

  iptables -w -t filter -F "${TAG}_FILTER" 2>/dev/null || true
  iptables -w -t filter -X "${TAG}_FILTER" 2>/dev/null || true

  iptables -w -t nat -F "${TAG}_NAT" 2>/dev/null || true
  iptables -w -t nat -X "${TAG}_NAT" 2>/dev/null || true
}

create_tag_chains() {
  # filter chain
  iptables -w -t filter -N "${TAG}_FILTER" 2>/dev/null || true
  iptables -w -t filter -F "${TAG}_FILTER"
  iptables -w -t filter -C FORWARD -j "${TAG}_FILTER" 2>/dev/null || \
    iptables -w -t filter -A FORWARD -j "${TAG}_FILTER"

  # nat chain
  iptables -w -t nat -N "${TAG}_NAT" 2>/dev/null || true
  iptables -w -t nat -F "${TAG}_NAT"
  iptables -w -t nat -C POSTROUTING -j "${TAG}_NAT" 2>/dev/null || \
    iptables -w -t nat -A POSTROUTING -j "${TAG}_NAT"
}

allow_established() {
  ipt -t filter -A "${TAG}_FILTER" -m conntrack --ctstate ESTABLISHED,RELATED -j ACCEPT
}

allow_forward() {
  local in_if="$1" out_if="$2"
  ipt -t filter -A "${TAG}_FILTER" -i "$in_if" -o "$out_if" -j ACCEPT
}

deny_forward() {
  local in_if="$1" out_if="$2"
  ipt -t filter -A "${TAG}_FILTER" -i "$in_if" -o "$out_if" -j DROP
}

enable_nat() {
  local src_subnet="$1" out_if="$2"
  ipt -t nat -A "${TAG}_NAT" -s "$src_subnet" -o "$out_if" -j MASQUERADE
}

# ---------- policy builders ----------
apply_firewall_router() {
  local nat_ap="$1" nat_lan="$2" isolate="$3"

  create_tag_chains
  allow_established

  # Permit uplink return path is handled by ESTABLISHED,RELATED.
  # Allow LAN/AP towards uplink (routing)
  allow_forward "$AP_IF" "$UPLINK_IF"
  allow_forward "$LAN_IF" "$UPLINK_IF"

  # Optionally allow inter-LAN communication
  if [[ "$isolate" == "yes" ]]; then
    deny_forward "$AP_IF" "$LAN_IF"
    deny_forward "$LAN_IF" "$AP_IF"
  else
    allow_forward "$AP_IF" "$LAN_IF"
    allow_forward "$LAN_IF" "$AP_IF"
  fi

  # NAT (internet sharing)
  if [[ "$nat_ap" == "yes" ]]; then
    enable_nat "$AP_SUBNET" "$UPLINK_IF"
  fi
  if [[ "$nat_lan" == "yes" ]]; then
    enable_nat "$LAN_SUBNET" "$UPLINK_IF"
  fi
}

# ---------- modes ----------
mode_ap_only() {
  enable_forwarding
  ensure_addr "$AP_IF" "$AP_GW_IP"
  ensure_addr "$LAN_IF" "$LAN_GW_IP"
  start_services

  flush_tagged_rules
  # routing only inside the box; no NAT; permit/deny AP<->LAN decided by "isolate" flag outside
  apply_firewall_router "no" "no" "no"
}

mode_hotspot_inet() {
  enable_forwarding
  ensure_addr "$AP_IF" "$AP_GW_IP"
  ensure_addr "$LAN_IF" "$LAN_GW_IP"
  start_services

  flush_tagged_rules
  apply_firewall_router "yes" "no" "no"
}

mode_router_inet() {
  enable_forwarding
  ensure_addr "$AP_IF" "$AP_GW_IP"
  ensure_addr "$LAN_IF" "$LAN_GW_IP"
  start_services

  flush_tagged_rules
  apply_firewall_router "yes" "yes" "no"
}

mode_router_inet_isolated() {
  enable_forwarding
  ensure_addr "$AP_IF" "$AP_GW_IP"
  ensure_addr "$LAN_IF" "$LAN_GW_IP"
  start_services

  flush_tagged_rules
  apply_firewall_router "yes" "yes" "yes"
}

mode_down() {
  stop_services
  flush_tagged_rules
  sysctl -w net.ipv4.ip_forward=0 >/dev/null || true

  # Optionally flush addresses on AP/LAN interfaces to “reset lab”
  ip -4 addr flush dev "$AP_IF" || true
  ip -4 addr flush dev "$LAN_IF" || true
}

status() {
  echo "== interfaces =="
  ip -br addr show dev "$UPLINK_IF" || true
  ip -br addr show dev "$AP_IF" || true
  ip -br addr show dev "$LAN_IF" || true

  echo
  echo "== forwarding =="
  sysctl net.ipv4.ip_forward
  echo
  echo "== services =="
  systemctl --no-pager --full status hostapd 2>/dev/null | sed -n '1,18p' || true
  echo
  systemctl --no-pager --full status dnsmasq 2>/dev/null | sed -n '1,18p' || true
  echo
  echo "== iptables (tagged) =="
  iptables -S | grep "$TAG" || true
  iptables -t nat -S | grep "$TAG" || true
}

usage() {
  cat <<EOF
usage: lab-router <mode>

modes:
  ap-only
  hotspot-inet
  router-inet
  router-inet-isolated
  down
  status
EOF
}

main() {
  need_root

  local mode="${1:-}"
  case "$mode" in
    ap-only) mode_ap_only ;;
    hotspot-inet) mode_hotspot_inet ;;
    router-inet) mode_router_inet ;;
    router-inet-isolated) mode_router_inet_isolated ;;
    down) mode_down ;;
    status) status ;;
    *) usage; exit 2 ;;
  esac
}

main "$@"
