Access Point Setup

A wireless access point (AP) is a networking device that allows Wi-Fi-enabled devices to connect to a wired network using radio communication (IEEE 802.11). It acts as a bridge between wireless clients and the local area network (LAN).

In simple terms, an access point extends a wired network into the wireless domain.

Core Function

An access point performs three main roles:

  1. Wireless–wired bridging

    • Connects wireless devices (laptops, phones, IoT devices) to Ethernet infrastructure.

    • Forwards frames between the wireless medium and the LAN.

  2. Network access coordination

    • Manages association and authentication of clients.

    • Broadcasts a SSID (Service Set Identifier).

    • Controls channel usage and transmission timing.

  3. Security enforcement

    • Implements Wi-Fi security protocols such as:

      • WPA2

      • WPA3

      • 802.1X (enterprise authentication, like eduroam/govroam)

Goal

The goal for this session is too:

  1. Plug in the USB Wi-Fi adapter.
  2. Run: dmesg | grep -i wlan
  3. Verify the interface exists: iw dev
  4. Confirm AP mode support: iw phy | grep -A10 "Supported interface modes"
  5. Ensure wlan1 is unmanaged by NetworkManager: nmcli device status
  6. Start hostapd: sudo hostapd /etc/hostapd/hostapd.conf
  7. Confirm AP started: AP-ENABLED
  8. Verify AP interface: iw dev wlan1 info
  9. Confirm SSID broadcast: ssid MyHotspot-ddmm
  10. Connect a phone/laptop to “MyHotspot-ddmm”.

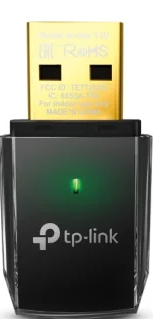

  1. We are going to use the TP-Link AC600 USB 2.0 Wireless Adapter (datasheet https://docs.rs-online.com/39f9/A700000009276868.pdf)

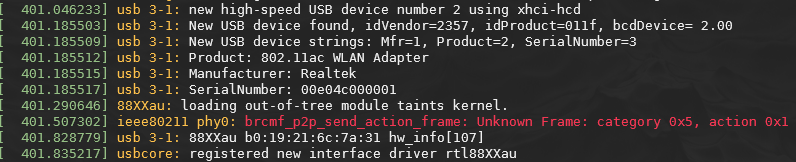

  2. Plug this into an available USB slot on the RPI and use dmesg to look for the regisration of the device.

    Terminal

    dmesg

    Note

    The dmesg command shows kernel messages related to hardware detection and driver loading. After inserting the USB wireless adapter, the system detects the device, identifies it as a Realtek 802.11ac adapter, loads the rtl88XXau driver, and registers the wireless interface with the Linux networking subsystem. This confirms the adapter is ready to be configured as either a station or access point.

  3. We can then verify via, iw, iwconfig, ifconfig, iwctl

    Terminal

    iw dev

    Output

    phy#1
    Interface wlan1
            ifindex 4
            wdev 0x100000001
            addr b0:19:21:6c:7a:31
            type managed
            channel 11 (2462 MHz), width: 20 MHz, center1: 2462 MHz
            txpower 20.00 dBm
phy#0
    Interface wlan0
            ifindex 3
            wdev 0x1
            addr d8:3a:dd:cf:4e:b3
            ssid eduroam
            type managed
            channel 11 (2462 MHz), width: 20 MHz, center1: 2462 MHz
            txpower 31.00 dBm

    Note

    The RPI shows two wireless interfaces:

    • wlan0 (the internal Wi-Fi adapter connected to eduroam)
    • and wlan1 (the USB adapter).

    Both are currently operating in managed mode, meaning they behave as wireless clients. In this lab, wlan1 will be reconfigured into access point mode so that other devices can connect to it.

  4. Before we do we should check that the hardware supports the access point mode. Infact, not all devices do have this capability

    Terminal

    iw phy phy1 info | grep -A10 "Supported interface modes"

    Output

    Supported interface modes:
        * IBSS
        * managed
        * AP
        * monitor
        * P2P-client
        * P2P-GO

    Explanation

    • IBSS (ad-hoc)

      • This is peer-to-peer wireless networking, where devices communicate directly without an access point.

      • Rarely used in modern networks, but useful conceptually for understanding infrastructure vs non-infrastructure Wi-Fi.

    • managed (station)

      • This is the normal client mode, where the device connects to an access point.

      • Examples:

        • connecting to eduroam

        • joining a home Wi-Fi network

        • connecting a laptop to a hotspot

    • AP (Access Point)

      • create a wireless network

      • broadcast an SSID

      • accept client associations

      • act as a bridge to the LAN

      • Without this capability, AP mode would not be possible.

    • monitor

      • Monitor mode allows the adapter to:

        • capture raw 802.11 frames

        • perform packet analysis

        • support tools like Wireshark or tcpdump

    • Wi-Fi direct

      • P2P-client connects to a peer device

      • P2P-GO (Group Owner) behaves similarly to a small AP

Set up Access Point with hostapd

  1. You should already have your internet connection with eduroam so:

    Terminal

    sudo apt install hostapd

    Note

    hostapd (Host Access Point Daemon) is a Linux service that enables a wireless interface to operate as an IEEE 802.11 access point.

    It is responsible for the wireless (Layer-2) functionality of the hotspot, including:

    • broadcasting the SSID

    • managing client association

    • handling authentication (e.g., WPA2-PSK)

    • controlling channel and radio parameters

    In this lab, hostapd turns wlan1 into a Wi-Fi access point that client devices can connect to.

  2. Once installed, modify the following file, sudo vim /etc/hostapd/hostapd.conf

    Code

    interface=wlan1
driver=nl80211
ssid=MyHotspot
hw_mode=g
channel=11
wmm_enabled=0

auth_algs=1
wpa=2
wpa_passphrase=12345678
wpa_key_mgmt=WPA-PSK
rsn_pairwise=CCMP
    • where you are using ssid=MyHotspot append the last part with daymonth of birth ie 0112 (01 December)

  3. Then start hostapd manually:

    Terminal

    sudo hostapd /etc/hostapd/hostapd.conf

    Output

    wlan1: interface state UNINITIALIZED->ENABLED
wlan1: AP-ENABLED

  4. In another terminal, you can check iw dev and you should see:

    Output

    phy#1
        Interface wlan1
                ifindex 4
                wdev 0x100000001
                addr b0:19:21:6c:7a:31
                ssid MyHotspot
                type AP
                channel 11 (2462 MHz), width: 20 MHz, center1: 2462 MHz
                txpower 20.00 dBm
phy#0
        Interface wlan0
                ifindex 3
                wdev 0x1
                addr d8:3a:dd:cf:4e:b3
                ssid eduroam
                type managed
                channel 11 (2462 MHz), width: 20 MHz, center1: 2462 MHz
                txpower 31.00 dBm

    Note

    The hostapd daemon configures wlan1 as an IEEE 802.11 access point. The message “AP-ENABLED” indicates the interface is now beaconing the SSID. The iw dev command confirms the interface type is AP and shows the broadcast SSID and operating channel.

    Warning

    We have AP that is visible, but it is unlikely to provide IP addresses, yet! Running ip addr show wlan1 will confirm this as there is no IP.

    4: wlan1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 2312 qdisc mq state DOWN group default qlen 1000
    link/ether b0:19:21:6c:7a:31 brd ff:ff:ff:ff:ff:ff
    inet6 fe80::b219:21ff:fe6c:7a31/64 scope link
    valid_lft forever preferred_lft forever

  5. Run the following to set an IP note, we want to have the gateway address

    Terminal

    sudo ip addr add 192.168.10.1/24 dev wlan1
sudo ip link set wlan1 up
ip addr show wlan1

    Output

    4: wlan1: <NO-CARRIER,BROADCAST,MULTICAST,UP,LOWER_UP> mtu 2312 qdisc mq state DORMANT group default qlen 1000
    link/ether b0:19:21:6c:7a:31 brd ff:ff:ff:ff:ff:ff
    inet 192.168.10.1/24 scope global wlan1
    valid_lft forever preferred_lft forever
    inet6 fe80::b219:21ff:fe6c:7a31/64 scope link
    valid_lft forever preferred_lft forever

  6. We will now install dnsmasq using sudo apt install dnsmasq

    Note

    dnsmasq is a lightweight DHCP and DNS server commonly used on small networks and embedded systems.

    In this lab, dnsmasq provides Layer-3 configuration for devices that connect to the access point, specifically:

    • assigning IP addresses (DHCP)

    • providing a default gateway

    • optionally providing DNS resolution

    Without dnsmasq (or another DHCP server), clients could connect to the Wi-Fi network but would not receive an IP address.

  7. Once installed create the following file sudo vim /etc/dnsmasq.d/hotspot.conf

    Code

    interface=wlan1
dhcp-range=192.168.10.50,192.168.10.150,12h

  8. Restart the dnsmasq, sudo systemctl restart dnsmasq

  9. Check the status systemctl status dnsmasq

    Output

    ● dnsmasq.service - dnsmasq - A lightweight DHCP and caching DNS server
    Loaded: loaded (/lib/systemd/system/dnsmasq.service; enabled; preset: enabled)
    Active: active (running) since Mon 2026-02-09 10:43:32 GMT; 1s ago
    Process: 6561 ExecStartPre=/usr/share/dnsmasq/systemd-helper checkconfig (code=exited, status=0/SUCCESS)
    Process: 6566 ExecStart=/usr/share/dnsmasq/systemd-helper exec (code=exited, status=0/SUCCESS)
    Process: 6572 ExecStartPost=/usr/share/dnsmasq/systemd-helper start-resolvconf (code=exited, status=0/SUCCESS)
   Main PID: 6571 (dnsmasq)
    Tasks: 1 (limit: 9577)
        CPU: 22ms
    CGroup: /system.slice/dnsmasq.service
            └─6571 /usr/sbin/dnsmasq -x /run/dnsmasq/dnsmasq.pid -u dnsmasq -7 /etc/dnsmasq.d,.dpkg-dist,.dpkg-ol>

Feb 09 10:43:32 raspberrypi systemd[1]: Starting dnsmasq.service - dnsmasq - A lightweight DHCP and caching DNS se>
Feb 09 10:43:32 raspberrypi dnsmasq[6571]: started, version 2.90 cachesize 150
Feb 09 10:43:32 raspberrypi dnsmasq[6571]: compile time options: IPv6 GNU-getopt DBus no-UBus i18n IDN2 DHCP DHCPv>
Feb 09 10:43:32 raspberrypi dnsmasq-dhcp[6571]: DHCP, IP range 192.168.10.50 -- 192.168.10.150, lease time 12h
Feb 09 10:43:32 raspberrypi dnsmasq[6571]: reading /etc/resolv.conf
Feb 09 10:43:32 raspberrypi dnsmasq[6571]: using nameserver 8.8.8.8#53
Feb 09 10:43:32 raspberrypi dnsmasq[6571]: using nameserver 8.8.4.4#53
Feb 09 10:43:32 raspberrypi dnsmasq[6571]: read /etc/hosts - 7 names
Feb 09 10:43:32 raspberrypi systemd[1]: Started dnsmasq.service - dnsmasq - A lightweight DHCP and caching DNS ser>
lines 1-21/21 (END)

    Most important line is the one that shows the hostspot.conf, look for the ...IP range 192.168.10.50 line

  10. Connect with your phone or laptop

Monitoring and stats

  1. You should notice in the terminal where you are currently running sudo hostapd /etc/hostapd/hostapd.conf you should see an output now

    Output

    wlan1: interface state UNINITIALIZED->ENABLED
wlan1: AP-ENABLED
wlan1: STA f8:fe:5e:8f:69:25 IEEE 802.11: associated
wlan1: AP-STA-CONNECTED f8:fe:5e:8f:69:25
wlan1: STA f8:fe:5e:8f:69:25 RADIUS: starting accounting session 539B2D7D6134DFC3
wlan1: STA f8:fe:5e:8f:69:25 WPA: pairwise key handshake completed (RSN)
wlan1: EAPOL-4WAY-HS-COMPLETED f8:fe:5e:8f:69:2

  2. You can also see signal strength other stats using iw dev wlan1 station dump

    Output

    Station f8:fe:5e:8f:69:25 (on wlan1)
        inactive time:  1440 ms
        signal:         -45 dBm
        current time:   1770635289093 ms

  3. Additionally, you can see information from dnsmasq too, cat /var/lib/misc/dnsmasq.leases

    Output

    1770678480 f8:fe:5e:8f:69:25 192.168.10.143 <hostname> ff:46:85:9a:df:00:02:00:00:ab:11:e1:fb:4e:7b:52:2e:3e:69

  4. Try also running sudo tcpdump -i wlan, to see live output from tcpdump which shows, arp, dhcp, dns and tcp traffic.

    Output


    tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on wlan1, link-type EN10MB (Ethernet), snapshot length 262144 bytes
11:15:42.740455 EAPOL key (3) v2, len 95
11:15:42.748024 EAPOL key (3) v2, len 117
11:15:42.748153 EAPOL key (3) v2, len 151
11:15:42.760782 EAPOL key (3) v2, len 95
11:15:42.796449 IP6 fe80::fafe:5eff:fe8f:6925 > ff02::16: HBH ICMP6, multicast listener report v2, 2 group record(s), length 48
11:15:42.797061 IP 0.0.0.0.bootpc > 255.255.255.255.bootps: BOOTP/DHCP, Request from f8:fe:5e:8f:69:25 (oui Unknown), length 294
11:15:42.797251 IP 192.168.10.1.bootps > 192.168.10.143.bootpc: BOOTP/DHCP, Reply, length 300
11:15:42.811777 IP6 fe80::fafe:5eff:fe8f:6925 > ff02::16: HBH ICMP6, multicast listener report v2, 2 group record(s), length 48
11:15:42.828656 IP 0.0.0.0.bootpc > 255.255.255.255.bootps: BOOTP/DHCP, Request from f8:fe:5e:8f:69:25 (oui Unknown), length 304
11:15:42.833784 IP 192.168.10.1.bootps > 192.168.10.143.bootpc: BOOTP/DHCP, Reply, length 302
11:15:42.938351 IP 192.168.10.143 > 224.0.0.252: igmp v2 report 224.0.0.252
11:15:42.940661 ARP, Request who-has 192.168.10.1 tell 192.168.10.143, length 28
11:15:42.940681 ARP, Reply 192.168.10.1 is-at b0:19:21:6c:7a:31 (oui Unknown), length 28
11:15:42.944898 IP 192.168.10.143.47143 > 192.168.10.1.domain: 44737+ [1au] A? 0.nixos.pool.ntp.org. (49)
11:15:42.982696 IP 192.168.10.1.domain > 192.168.10.143.47143: 44737 4/0/1 A 185.57.191.230, A 88.80.187.85, A 131.111.8.60, A 139.162.224.201 (113)
11:15:42.993537 IP 192.168.10.143.50399 > 192.168.10.1.domain: 41106+ [1au] AAAA? 0.nixos.pool.ntp.org. (49)
11:15:42.993582 IP 192.168.10.1.domain > 192.168.10.143.50399: 41106 0/1/1 (131)
11:15:42.999166 IP 192.168.10.143.5355 > 224.0.0.252.5355: UDP, length 26
11:15:42.999166 IP6 fe80::fafe:5eff:fe8f:6925.5355 > ff02::1:3.5355: UDP, length 26
11:15:43.009168 IP 192.168.10.143.48070 > 230.191.57.185.no-ptr.as201971.net.ntp: NTPv4, Client, length 48
11:15:43.057231 IP6 fe80::fafe:5eff:fe8f:6925 > ff02::16: HBH ICMP6, multicast listener report v2, 1 group record(s), length 28
11:15:43.244718 IP 192.168.10.143.5355 > 224.0.0.252.5355: UDP, length 26
11:15:43.244718 IP6 fe80::fafe:5eff:fe8f:6925.5355 > ff02::1:3.5355: UDP, length 26
11:15:43.494484 IP 192.168.10.143.5355 > 224.0.0.252.5355: UDP, length 26
11:15:43.494485 IP6 fe80::fafe:5eff:fe8f:6925.5355 > ff02::1:3.5355: UDP, length 26
11:15:43.994839 IP6 fe80::fafe:5eff:fe8f:6925 > ip6-allrouters: ICMP6, router solicitation, length 16
11:15:47.718184 IP6 fe80::fafe:5eff:fe8f:6925 > ip6-allrouters: ICMP6, router solicitation, length 16
11:15:47.986992 ARP, Request who-has 192.168.10.143 tell 192.168.10.1, length 28
11:15:47.989708 ARP, Reply 192.168.10.143 is-at f8:fe:5e:8f:69:25 (oui Unknown), length 28
11:15:51.953157 IP 192.168.10.143 > 224.0.0.252: igmp v2 report 224.0.0.252
11:15:53.248202 IP 192.168.10.143.53432 > 88-80-187-85.ip.linodeusercontent.com.ntp: NTPv4, Client, length 48
11:15:55.299073 IP6 fe80::fafe:5eff:fe8f:6925 > ip6-allrouters: ICMP6, router solicitation, length 16
11:16:03.500247 IP 192.168.10.143.53640 > pool.ntp0.cam.ac.uk.ntp: NTPv4, Client, length 48
11:16:11.146298 IP6 fe80::fafe:5eff:fe8f:6925 > ip6-allrouters: ICMP6, router solicitation, length 16
11:16:13.749327 IP 192.168.10.143.53755 > 139-162-224-201.ip.linodeusercontent.com.ntp: NTPv4, Client, length 48
11:16:19.091093 ARP, Request who-has 192.168.10.1 tell 192.168.10.143, length 28
11:16:19.091113 ARP, Reply 192.168.10.1 is-at b0:19:21:6c:7a:31 (oui Unknown), length 28
11:16:24.004094 IP 192.168.10.143.43001 > 192.168.10.1.domain: 14275+ [1au] A? 1.nixos.pool.ntp.org. (49)
11:16:24.004094 IP 192.168.10.143.60440 > 192.168.10.1.domain: 22279+ [1au] AAAA? 1.nixos.pool.ntp.org. (49)
11:16:24.004261 IP 192.168.10.1.domain > 192.168.10.143.60440: 22279 0/1/1 (131)
11:16:24.024810 IP 192.168.10.1.domain > 192.168.10.143.43001: 14275 4/0/1 A 193.150.34.2, A 185.137.221.158, A 78.141.201.161, A 139.162.242.115 (113)
11:16:24.028501 IP 192.168.10.143.53005 > time.rdg.uk.as44574.net.ntp: NTPv4, Client, length 48
11:16:34.248880 IP 192.168.10.143.44679 > 185.137.221.158.ntp: NTPv4, Client, length 48
11:16:42.596456 IP6 fe80::fafe:5eff:fe8f:6925 > ip6-allrouters: ICMP6, router solicitation, length 16
11:16:44.497808 IP 192.168.10.143.51552 > mail.aster.edu.pl.ntp: NTPv4, Client, length 48

Summary

The access point manages wireless association, while dnsmasq assigns IP addresses. Tools like iw, hostapd, and dnsmasq allow observation of client connections at different layers of the networking stack.

SUCCESS! We will look at routing next!
