Lab 7: Exception Handling

Using IntelliJ you are going to do some error handling exploration.

Open IntelliJ
Create a new project

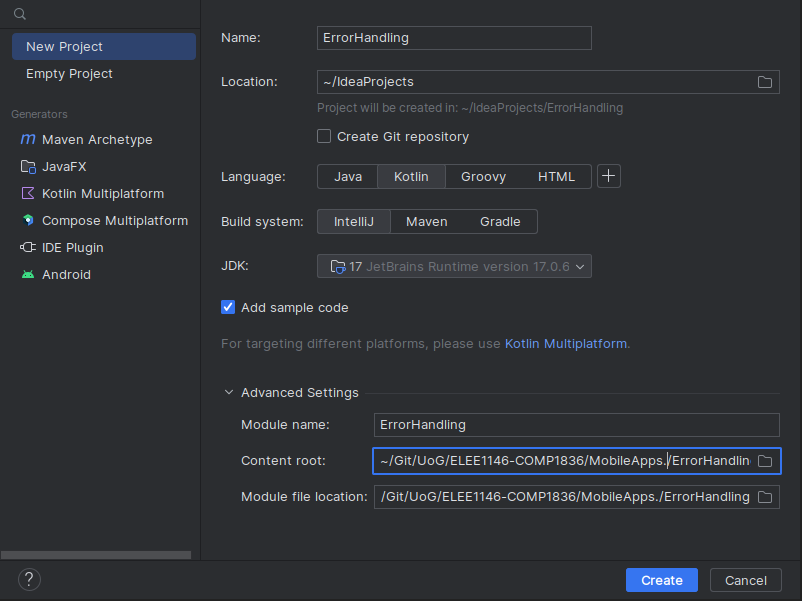

- Call it ErrorHandling like the screen shot below.
- Note you can use any JDK for this exercise, I am using JDK 17.0.6

Step 1

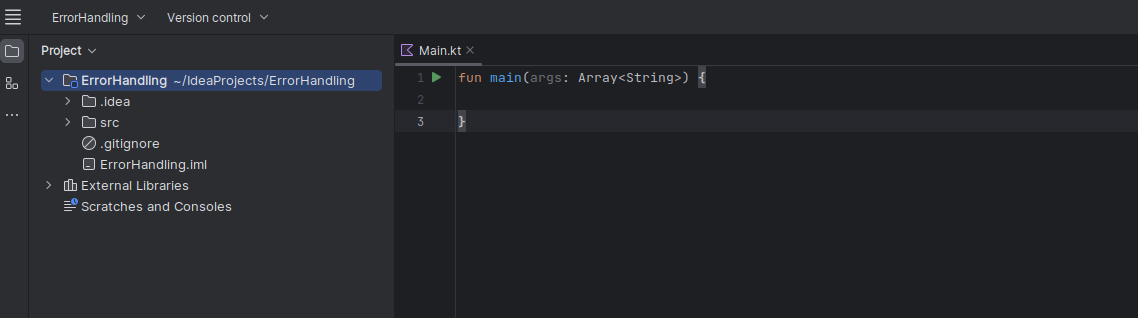

Reproduce the following to set up the project

Now you can edit main() with the following code, then compile and run.

Code

{
    System.out.println(3/0);
}

Info

We are explicity calling the println() from the function from the System library.
You can do this implicitly just by writing println(...)
I would recommend the former, until you undestand this.

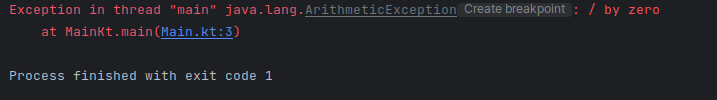

You should see the following output in the Run terminal...

Modify the Main.kt as shown below. The change is to catch an exception through try-catch block.

Code

    try{
        System.out.println(3/0);
    }
    catch(e : Exception){
        System.out.printf("Caught runtime exception = %s\n", e);
    }

If you run the program again you should get the following output:

Modify the Main.java as shown below. The change is to use more specific Exception class, ArithmeticException in this case.

Code

    try{
        System.out.println(3/0);
    }
    catch( e : ArithmeticException ){
        System.out.printf("Caught runtime exception = %s\n", e);
    }

If you run the program again you should get the following output:

Let's try changing the Exception Class, to NumberFormatExpression.

Code

    try{
            System.out.println(3/0);
        }
        catch( e : NumberFormatException){
            System.out.printf("Caught runtime exception = %s\n", e);
        }

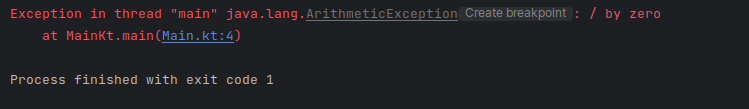

What happens when you run it?

Because the expected Exception Class is wrong.

For fun, do the following, what happens and why?

Code

try{
        System.out.println(3/0);
    } catch( e : ArithmeticException){
        System.out.printf("Caught runtime exception = %s\n", e);
        System.out.println(3/0);
    }

Step 2: Catch multiple exceptions

Reproduce the following code:

Code

import javax.swing.JOptionPane

fun main(args: Array<String>) {

    // Enter the following values and see what exception is caught.
    //    0, 4, character, <no value>
    try {
        val value = JOptionPane.showInputDialog(null, "Enter value:")
        // Non-numeric value will result an NumberFormatException
        val divisor = value.toInt()
        // If the divisor is 0, it will result in ArithmetricException
        println(3 / divisor)
    } catch (e: NumberFormatException) {
        println("Exception caught by this program: Enter numeric value.")
    } catch (e: ArithmeticException) {
        println("Exception caught by this program: Divisor was 0.")
    }
    println("After exception.")
}

You'll notice that we are now importing a library on line 2 import javax.swing.JOptionPane; we now will be able to have a GUI.

Build and run the program
- Observe Input dialog box appears.
- Enter 0 in the field.
- Click OK.

Notice that the exception was caught.

Build and run the program

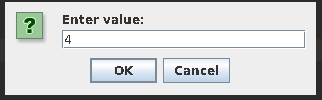

- Observe Input dialog box appears.
- Enter 4 in the field.
- Click OK.

Notice that the No exception was caught as it was not needed

What happens when you enter a character or nothing instead?

Step 3

Either start a new project or remove what you have done before

You are now going to implement a larger program that illustrates many different types of Exception's

Import the following libraries at the top of the script:

Code

import java.awt.Frame
import java.awt.GridLayout
import java.awt.event.ActionEvent
import java.awt.event.ActionListener
import java.awt.event.WindowAdapter
import java.awt.event.WindowEvent
import java.io.FileInputStream
import javax.swing.ButtonGroup
import javax.swing.JFrame
import javax.swing.JPanel
import javax.swing.JRadioButton

Modify the main class line:
Code
```
// Create a class Main that extends JFrame and implements ActionListener
class Main : JFrame(), ActionListener {
```
Info

This declares a class named Main that extends JFrame (a Swing component for creating windows) and implements the ActionListener interface (for handling button clicks).
After updating main in step 2, add declare and initialise a private immutable array of Doubles with two elements with values 0.0.
Solution
```
private val a = arrayOf<Double>(0.0,0.0)  // Create an array of Doubles
```

Now create these JButton objects:

divideByZeroButton
badCastButton
arrayBoundsButton
nullPointerButton
overflowButton
noSuchFileButton
throwUnknownButton

Code: Solution here... [6 lines]

private val divideByZeroButton: JRadioButton
private val badCastButton: JRadioButton
private val arrayBoundsButton: JRadioButton
private val nullPointerButton: JRadioButton
private val overflowButton: JRadioButton
private val noSuchFileButton: JRadioButton
private val throwUnknownButton: JRadioButton

Now we are going to use init to initialise our graphical setup
Code
```
 // Constructor
 init {
     // Create a JPanel and GridLayout
     val p = JPanel()
     p.layout = GridLayout(8, 1)
```
Info

This is the constructor (init block) of the Main class. It creates a JPanel (a container) and sets its layout to a grid with 8 rows and 1 column.

Now create a block of radio buttons, after the p.layout = GridLayout(8,1) line, for the various exception scenarios by adding them to a button group (ButtonGroup ensures only one button is selected at a time), and adds them to the panel.

Code

    // Create radio buttons and add them to the panel
    val g = ButtonGroup()
    divideByZeroButton = addRadioButton("Divide by zero", g, p)
    badCastButton = addRadioButton("Bad cast", g, p)
    arrayBoundsButton = addRadioButton("Array bounds", g, p)
    nullPointerButton = addRadioButton("Null pointer", g, p)
    overflowButton = addRadioButton("Overflow", g, p)
    noSuchFileButton = addRadioButton("No such file", g, p)
    throwUnknownButton = addRadioButton("Throw unknown", g, p)
    contentPane.add(p)
} // remeber to add this closing brace for init

After the closing brace } for init create a new function that is called addRadioButton(), that takes the following arguments:
- String declared as s
- ButtonGroup declared as g
- JPanel declared as p
Code: Solution here... [1 lines]
```
private fun addRadioButton(s: String, g: ButtonGroup, p: JPanel): JRadioButton {
```
Inside the function reproduce the follwing:
Code
```
    val button = JRadioButton(s, false)
    button.addActionListener(this)
    g.add(button)
    p.add(button)
    return button
}
```
Info

This function creates and configures a radio button, adds it to the specified ButtonGroup and JPanel, then returns the button.

After the closing } of the addRadioButton() we are going to add the core functionality of the program, create the following actionPerformed function:

Code

// Handle button clicks and trigger/catch exceptions
override fun actionPerformed(evt: ActionEvent) {
    try {
        val source = evt.source
        if (source === divideByZeroButton) {
            // Attempt to divide by zero, which will throw an ArithmeticException
            print(0/0)
        } else if (source === badCastButton) {
            // Attempt to perform a bad cast, which will throw a ClassCastException
            val f = evt.source as Frame
        } else if (source === arrayBoundsButton) {
            // Attempt to access an out-of-bounds array index, which will throw an ArrayIndexOutOfBoundsException
            a[1] = a[10]
        } else if (source === nullPointerButton) {
            // Attempt to access a null object, which will throw a NullPointerException
            val f: Frame? = null
            f!!.setSize(200, 200);
        } else if (source === overflowButton) {
            // Perform integer overflow, which Kotlin does not natively detect
            a[1] = (1000 * 1000 * 1000 * 1000).toDouble()
            val n = a[1].toInt()
            print("Value of a[1]: ${a[1]}... Value of n: $n\n")

            // Manually check for integer overflow and throw an exception
            check((n) > Int.MAX_VALUE) { "Integer overflow detected" }
        } else if (source === noSuchFileButton) {
            // Attempt to open a non-existent file, which will throw a FileNotFoundException
            val `is` = FileInputStream("Java Source and Support")
        } else if (source === throwUnknownButton) {
            // Explicitly throw an UnknownError
            throw UnknownError()
        }
    } catch (e: RuntimeException) {
        // Catch and print a RuntimeException
        println("Caught RuntimeException: $e")
    } catch (e: Exception) {
        // Catch and print a more general Exception
        println("Caught Exception: $e")
    }
}

Info

This function is called when a button is clicked. It tries different actions based on the clicked button, and catches specific exceptions (e.g., ArithmeticException, ClassCastException). It also catches more general exceptions (RuntimeException, Exception).

Now create a Companion object after the closing brace of the previous function, which will act as the main entry point for the program:

Code

companion object {
    @JvmStatic
    fun main(args: Array<String>) {
        // Create a frame and set up the UI

        try{
            println(3/0);
        }
        catch(e : Exception){
            println("Caught runtime exception = ${e}\n" );
        }
        val frame: JFrame = Main()
        frame.type = Type.POPUP
        frame.setLocation(800,300)
        frame.setSize(200, 250)
        frame.addWindowListener(object : WindowAdapter() {
            override fun windowClosing(e: WindowEvent) {
                exitProcess(0)
            }
        })
        frame.isVisible = true
    }
}

Info

A companion object is a type of object declaration that allows an object to act similar to static objects in other languages. A companion object is always declared inside of another class, and its properties and functions can be accessed directly with the class name. The Kotlin compiler ensures that there is only one instance of a companion object.

Build and run the program.

Observe dialog box appears.
- Click any of the radio buttons.
- Clicking a button will execute code fragement that generates an exception.

Please do the following tasks
- Try other buttons and observe the exceptions that are caught
- Try to catch exceptions using more specific exception classes (over RuntimeException and Exception classes).
If you have got to here, great job. 3
- Convert the try and catch to t runCatching with onSuccess and onFailure extension methods (see lecture if unsure) inside the actionPerformed function.

Code: Section 10 full code here ...[106 lines]

import java.awt.Frame
import java.awt.GridLayout
import java.awt.event.ActionEvent
import java.awt.event.ActionListener
import java.awt.event.WindowAdapter
import java.awt.event.WindowEvent
import java.io.FileInputStream
import javax.swing.ButtonGroup
import javax.swing.JFrame
import javax.swing.JPanel
import javax.swing.JRadioButton

// Create a class Main that extends JFrame and implements ActionListener
class Main : JFrame(), ActionListener {
    private val a = arrayOf<Double>(0.0,0.0)  // Create an array of Doubles
    private val divideByZeroButton: JRadioButton
    private val badCastButton: JRadioButton
    private val arrayBoundsButton: JRadioButton
    private val nullPointerButton: JRadioButton
    private val overflowButton: JRadioButton
    private val noSuchFileButton: JRadioButton
    private val throwUnknownButton: JRadioButton

    // Constructor
    init {
        // Create a JPanel and GridLayout
        val p = JPanel()
        p.layout = GridLayout(8, 1)

        // Create radio buttons and add them to the panel
        val g = ButtonGroup()
        divideByZeroButton = addRadioButton("Divide by zero", g, p)
        badCastButton = addRadioButton("Bad cast", g, p)
        arrayBoundsButton = addRadioButton("Array bounds", g, p)
        nullPointerButton = addRadioButton("Null pointer", g, p)
        overflowButton = addRadioButton("Overflow", g, p)
        noSuchFileButton = addRadioButton("No such file", g, p)
        throwUnknownButton = addRadioButton("Throw unknown", g, p)
        contentPane.add(p)
    }

    private fun addRadioButton(s: String, g: ButtonGroup, p: JPanel): JRadioButton {
        val button = JRadioButton(s, false)
        button.addActionListener(this)
        g.add(button)
        p.add(button)
        return button
    }

    // Handle button clicks and trigger/catch exceptions
    override fun actionPerformed(evt: ActionEvent) {
        try {
            val source = evt.source
            if (source === divideByZeroButton) {
                // Attempt to divide by zero, which will throw an ArithmeticException
                 print(0/0)
            } else if (source === badCastButton) {
                // Attempt to perform a bad cast, which will throw a ClassCastException
                val f = evt.source as Frame
            } else if (source === arrayBoundsButton) {
                // Attempt to access an out-of-bounds array index, which will throw an ArrayIndexOutOfBoundsException
                a[1] = a[10]
            } else if (source === nullPointerButton) {
                // Attempt to access a null object, which will throw a NullPointerException
                val f: Frame? = null
                f!!.setSize(200, 200);
            } else if (source === overflowButton) {
                // Perform integer overflow, which Kotlin does not natively detect
                a[1] = (1000 * 1000 * 1000 * 1000).toDouble()
                val n = a[1].toInt()
                print("Value of a[1]: ${a[1]}... Value of n: $n\n")

                // Manually check for integer overflow and throw an exception
                check((n) > Int.MAX_VALUE) { "Integer overflow detected" }
            } else if (source === noSuchFileButton) {
                // Attempt to open a non-existent file, which will throw a FileNotFoundException
                val `is` = FileInputStream("Java Source and Support")
            } else if (source === throwUnknownButton) {
                // Explicitly throw an UnknownError
                throw UnknownError()
            }
        } catch (e: RuntimeException) {
            // Catch and print a RuntimeException
            println("Caught RuntimeException: $e")
        } catch (e: Exception) {
            // Catch and print a more general Exception
            println("Caught Exception: $e")
        }
    }

    // Main entry point
    companion object {
        @JvmStatic
        fun main(args: Array<String>) {
            // Create a frame and set up the UI
            val frame: JFrame = Main()
            frame.type = Type.POPUP
            frame.setSize(200, 300)
            frame.addWindowListener(object : WindowAdapter() {
                override fun windowClosing(e: WindowEvent) {
                    exitProcess(0)
                }
            })
            frame.isVisible = true
        }
    }
}

Code: actionPerformed: runCatching code for section 12. [50 lines]

In this version, runCatching is used to encapsulate the code that might throw exceptions. onSuccess is a block that executes when there is no exception, and onFailure is a block that executes when an exception occurs. The specific exception types are checked inside the onFailure block, and other exceptions are rethrown.

override fun actionPerformed(evt: ActionEvent) {
    runCatching {
        val source = evt.source
        when {
            source === divideByZeroButton -> {
                // Attempt to divide by zero, which will throw an ArithmeticException
                print(0 / 0)
            }
            source === badCastButton -> {
                // Attempt to perform a bad cast, which will throw a ClassCastException
                val f = evt.source as Frame
            }
            source === arrayBoundsButton -> {
                // Attempt to access an out-of-bounds array index, which will throw an ArrayIndexOutOfBoundsException
                a[1] = a[10]
            }
            source === nullPointerButton -> {
                // Attempt to access a null object, which will throw a NullPointerException
                val f: Frame? = null
                f!!.setSize(200, 200)
            }
            source === overflowButton -> {
                // Perform integer overflow, which Kotlin does not natively detect
                a[1] = (1000 * 1000 * 1000 * 1000).toDouble()
                val n = a[1].toInt()
                print("Value of a[1]: ${a[1]}... Value of n: $n\n")

                // Manually check for integer overflow and throw an exception
                check((n) > Int.MAX_VALUE) { "Integer overflow detected" }
            }
            source === noSuchFileButton -> {
                // Attempt to open a non-existent file, which will throw a FileNotFoundException
                val `is` = FileInputStream("Java Source and Support")
            }
            source === throwUnknownButton -> {
                // Explicitly throw an UnknownError
                throw UnknownError()
            }
        }
    }.onSuccess {
        // This block executes if there is no exception
        println("No exception occurred")
    }.onFailure { e ->
        // This block executes if an exception occurs
        when (e) {
            is RuntimeException -> println("Caught RuntimeException: $e")
            is Exception -> println("Caught Exception: $e")
            else -> throw e // rethrow other exceptions
        }
    }
}

Keyboard shortcuts

Mobile Applications for Engineers

Lab 7: Exception Handling

Step 1

Step 2: Catch multiple exceptions

Step 3
