Border Gateway Protocol

This is a Border Gateway Protocol routing lab in which we will learn how to configure BGP routing for a network having two routers inside packet tracer.

BGP Part 1

Here in this Lab there are two Routers and a total of two network:

  1. 192.101.1.0/24

  2. 8.8.8.0/24

  3. 192.168.1.0/24

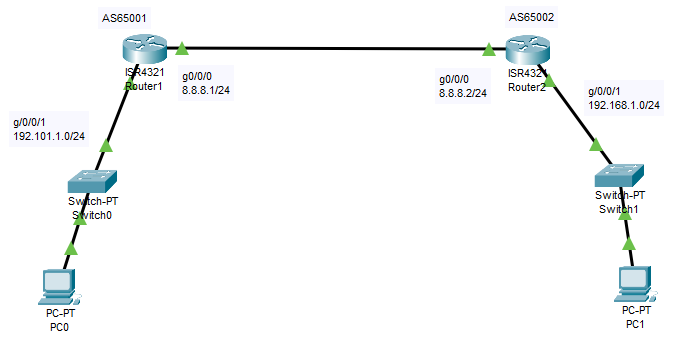

Figure 1 illustrates how the setup should look.

Figure 1 BGP Setup

Tip

Remember to use the ? if you are unsure on what to do next or how each command, argument, keyword works

If you are struggling to get the components you can download the pkt file here: BGP_Routing_PT1.pkt

Step:1 - Configuration on Router R1

Assign an IP address on interfaces of router R1.

Terminal

Router>en

Router# show ip inter br

Router# show ip protocols

Router# show ip bgp

Router# config t

Router(config)# int gig0/0/0

Router(config-if)# ip address 192.101.1.1 255.255.255.0

Router(config-if)# no shut

Router(config-if)# exit

Router(config)# int gig0/0/1

Router(config-if)# ip address 8.8.8.1 255.255.255.0

Router(config-if)# no shut

Router(config-if)# end

Router# show ip inter br

Step:2 - Configure BGP for Router 1

Terminal

Router# config t

Router(config)# router ?

Router(config)# router bgp ?

Router(config)# router bgp 65001

Router(config-router)# neighbor ?

Router(config-router)# neighbor 8.8.8.2 ?

Router(config-router)# neighbor 8.8.8.2 remote-as 65002

Router(config-router)# ?

Router(config-router)# network 192.101.1.0 mask 255.255.255.0

Router(config-router)# end

Router# wr ?

Router# wr memory

Router# show ip bgp

    BGP table version is 1, local router ID is 192.168.1.1

Router# show ip bgp summary

    BGP router identifier 192.168.1.1, local AS number 65001

    Neighbor        V    AS       MsgRcvd    MsgSent   TblVer  InQ   OutQ    Up/Down  State/PfxRcd

    8.8.8.2             4  65002       0                   0                1         0       0          00:45:46         4

Step:3 - Configuration on Router R2

Terminal

Router>en

Router# show ip inter br

Router# show ip protocols

Router# show ip bgp

Router# config t

Router(config)# int gig0/0/0

Router(config-if)# ip address 192.168.1.1 255.255.255.0

Router(config-if)# no shut

Router(config-if)# exit

Router(config)# int gig0/0/1

Router(config-if)# ip address 8.8.8.2 255.255.255.0

Router(config-if)# no shut

Router(config-if)# end

Router# show ip inter br

Step:4 - Configure Static Routing on Router R2

Terminal

Router# config t

Router(config)# router ?

Router(config)# router bgp ?

Router(config)# router bgp 65002

Router(config-router)# neighbor ?

Router(config-router)# neighbor 8.8.8.1 ?

Router(config-router)# neighbor 8.8.8.1 remote-as 65001

Output

Router(config-router)#%BGP-5-ADJCHANGE: neighbor 8.1.1.1 Up

Terminal

Router(config-router)# ?

Router(config-router)# network 192.168.1.0 mask 255.255.255.0

Router(config-router)# end

Router# wr ?

Router# wr memory

Router# show ip bgp

    BGP table version is 1, local router ID is 192.168.1.1

Router# show ip bgp summary

    BGP router identifier 192.101.1.1, local AS number 65001

    Neighbor        V    AS       MsgRcvd    MsgSent   TblVer  InQ   OutQ    Up/Down  State/PfxRcd

    8.8.8.2             4  65002       0                   0                1         0       0          00:45:46         4

Router# wr memory

Router#ping 8.8.8.1

    Type escape sequence to abort.

    Sending 5, 100-byte ICMP Echos to 8.8.8.1, timeout is 2 seconds:

    !!!!!

    Success rate is 100 percent (5/5), round-trip min/avg/max = 0/0/1 ms

Router#tracer 192.101.1.2

    Type escape sequence to abort.

    Tracing the route to 192.101.1.2

    1   8.8.8.2         0 msec    0 msec    0 msec

    2   192.168.1.2     0 msec    0 msec    0 msec

BGP Part 2

Here in this Lab there are two Routers and a total of two network:

  1. 192.101.1.0/24

  2. 8.8.8.0/24

  3. 10.2.3.0/24

  4. 192.168.1.0/24

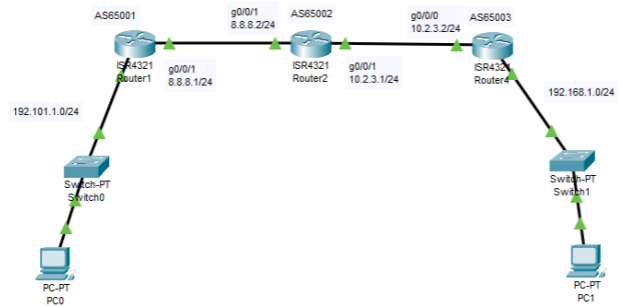

Figure 2 illustrates how the setup should look.

Figure 2 BGP Setup

Tip

Remember to use the ? if you are unsure on what to do next or how each command, argument, keyword works

If you are struggling to get the components you can download the pkt file here: BGP_Routing_PT2.pkt

Step:1 - Configuration on Router R1

Assign an IP address on interfaces of router R1.

Terminal

Router>en

Router# show ip inter br

Router# show ip protocols

Router# show ip bgp

Router# config t

Router(config)# int gig0/0/0

Router(config-if)# ip address 192.101.1.1 255.255.255.0

Router(config-if)# no shut

Router(config-if)# exit

Router(config)# int gig0/0/1

Router(config-if)# ip address 8.8.8.1 255.255.255.0

Router(config-if)# no shut

Router(config-if)# end

Router# show ip inter br

Step:2 - Configure BGP for Router 1

Terminal

Router# config t

Router(config)# router ?

Router(config)# router bgp ?

Router(config)# router bgp 65001

Router(config-router)# neighbor ?

Router(config-router)# neighbor 8.8.8.2 ?

Router(config-router)# neighbor 8.8.8.2 remote-as 65002

Router(config-router)# ?

Router(config-router)# network 192.101.1.0 mask 255.255.255.0

Router(config-router)# end

Router# wr ?

Router# show ip bgp

    BGP table version is 1, local router ID is 192.168.1.1

Router# show ip bgp summary

    BGP router identifier 192.168.1.1, local AS number 65001

    Neighbor        V    AS       MsgRcvd    MsgSent   TblVer  InQ   OutQ    Up/Down  State/PfxRcd

    8.8.8.2             4  65002       0                   0                1         0       0          00:45:46         4

Step:3 - Configuration on Router R2

Terminal

Router>en

Router# show ip inter br

Router# show ip protocols

Router# show ip bgp

Router# config t

Router(config)# int gig0/0/0

Router(config-if)# ip address 8.8.8.2 255.255.255.0

Router(config-if)# no shut

Router(config-if)# exit

Router(config)# int gig0/0/1

Router(config-if)# ip address 10.2.3.1 255.255.255.0

Router(config-if)# no shut

Router(config-if)# end

Router# show ip inter br

Step:4 - Configure Static Routing on Router R2

Terminal

Router# config t

Router(config)# router ?

Router(config)# router bgp ?

Router(config)# router bgp 65002

Router(config-router)# neighbor ?

Router(config-router)# neighbor 8.8.8.1 ?

Router(config-router)# neighbor 8.8.8.1 remote-as 65001

Output

Router(config-router)#%BGP-5-ADJCHANGE: neighbor 8.1.1.1 Up

Terminal

Router(config-router)# neighbor 10.2.3.2 remote-as 65003

Router(config-router)# end

Router# wr ?

Router# wr memory

Router# show ip bgp

    BGP table version is 1, local router ID is 192.168.1.1

Router# show ip bgp summary

    BGP table version is 3, local router ID is 10.2.3.1

    Network                    Next Hop       Metric    LocPrf      Weight           Path

    * 8.8.8.0/24               8.8.8.1              0             0                 0 		65001 i

    *> 192.101.1.0/24    8.8.8.1              0             0                 0 		65001 i

Router# wr ?

Router# wr memory

Router#ping 8.8.8.1

    Type escape sequence to abort.

    Sending 5, 100-byte ICMP Echos to 8.8.8.1, timeout is 2 seconds:

    !!!!!

    Success rate is 100 percent (5/5), round-trip min/avg/max = 0/0/1 ms

Router#tracer 192.101.1.2

    Type escape sequence to abort.

    Tracing the route to 192.101.1.2

    1   8.8.8.2         0 msec    0 msec    0 msec

    2   192.168.1.2     0 msec    0 msec    0 msec

Step:5 - Configuration on Router R3

Terminal

Router>en

Router# show ip inter br

Router# show ip protocols

Router# show ip bgp

Router# config t

Router(config)# int gig0/0/0

Router(config-if)# ip address 10.2.3.2 255.255.255.0

Router(config-if)# no shut

Router(config-if)# exit

Router(config)# int gig0/0/1

Router(config-if)# ip address 192.168.1.1 255.255.255.0

Router(config-if)# no shut

Router(config-if)# end

Router# show ip inter br

Step:5 - Configure BGP for Router R3

Terminal

Router# config t

Router(config)# router ?

Router(config)# router bgp ?

Router(config)# router bgp 65003

Router(config-router)# neighbor ?

Router(config-router)# neighbor 10.2.3.1 ?

Router(config-router)# neighbor 10.2.3.1 remote-as 65002

Output

Router(config-router)#%BGP-5-ADJCHANGE: neighbor 10.2.3.1 Up

Terminal

Router(config-router)# network 192.168.1.0 mask 255.255.255.0

Router(config-router)# end

Router# wr ?

Router# wr memory

Step:6 - Ping

Use tracert on pc1 and pc2 to see if your route is setup correctly, you may need to ping a few times to make the route tables upate.
