Lab 5: Mass Converter App

1. Mass Converter App Setup

You will be developing concert ticket app that lets you select predifined bands and check the cost of each ticket. The Mass Converter App is demoed right: Info You will need to download the following picture folder -> Lab_5_Picture.zip The completed project can be found here at end of session -> https://github.com/UniOfGreenwich/MobileApps-MassConvertor

Setting Up the Project

Video @ 1:13 - 2:02

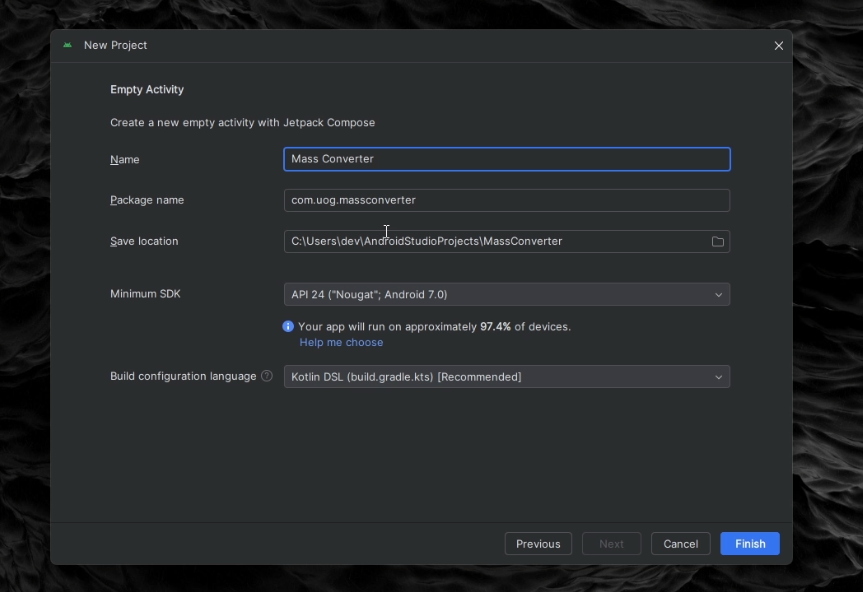

1. Create a New Project:

   • Select "Empty Activity" and click "Next".
   • Name your application "Mass Converter".
   • Ensure the package name is set to com.uog.massconverter.
   • Set the minimum API level to 24.
   • Click "Finish" to create the project.



2. Adding images and creating logo assest

All the images are available in the Pictures folder downloaded in the zip. Drag the files to the mipmap folder. For the assest right clock the conversion_logo.png and get the absolute path right click the res folder and add new image asset In the Path: field paste the Absolute File path you copied earlier, and then select the file. Click the Next button to add the custom launcher icon. On the next dialog window, click the Finish button. The custom icons will be displayed in res/mipmap folder

Modifying MainActivity

Video @ 2.02 - 10.21

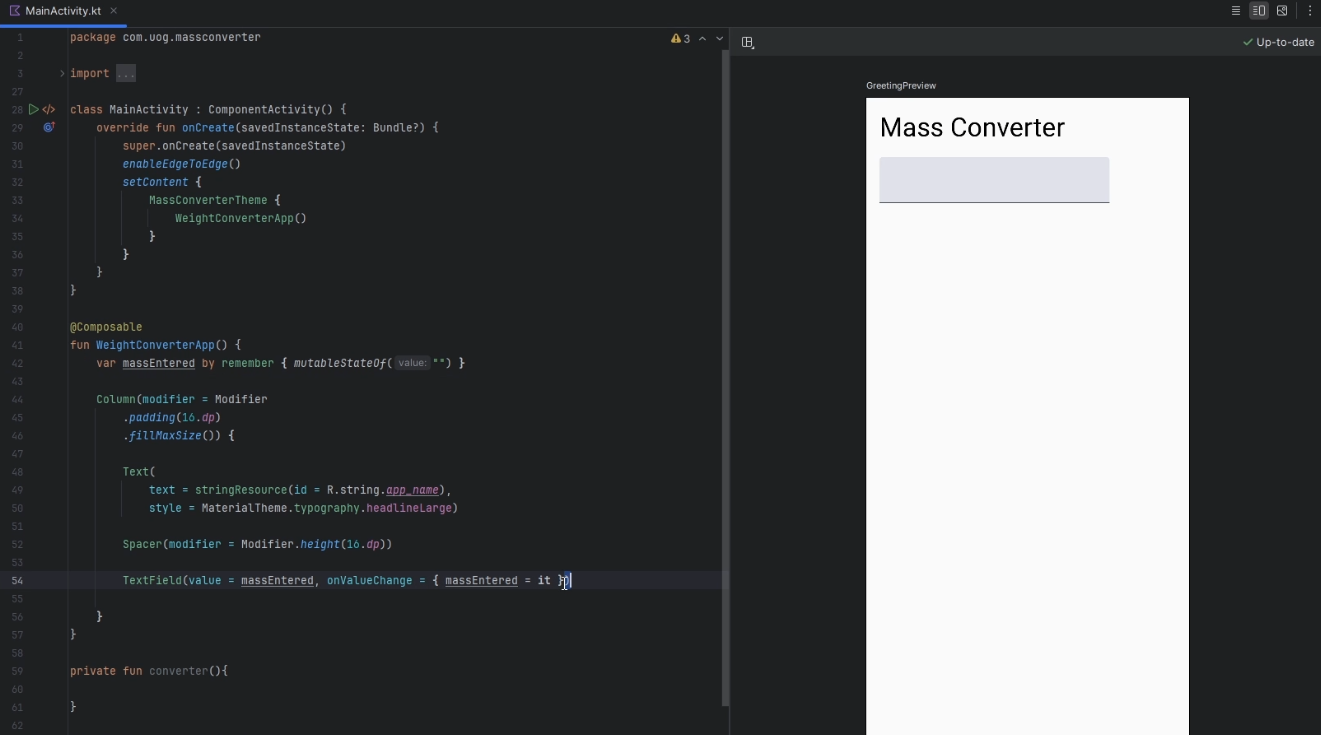

1. Modify the Main Activity Layout:

• Update the MainActivity.kt file so that we have our own layout and set of Composables etc...

  Code

  class MainActivity : ComponentActivity() {
      override fun onCreate(savedInstanceState: Bundle?) {
          super.onCreate(savedInstanceState)
          setContent {
              MassConvertorTheme {
                  WeightConverterApp()
              }
          }
      }

      @Composable
      fun WeightConverterApp() {
          var massEntered by remember { mutableStateOf("") }

          Column(
              modifier = Modifier
                  .padding(16.dp)
                  .fillMaxSize()
          ) {
              Text(text = "Mass Converter", style = MaterialTheme.typography.headlineSmall)
              Spacer(modifier = Modifier.height(16.dp))

              TextField(
                  value = massEntered,
                  onValueChange = { massEntered = it },
              )
          }
      }

      private fun converter(){

      }

  @Preview(showBackground = true)
      @Composable
      fun DefaultPreview() {
          MassConvertorTheme {
              WeightConverterApp()
          }
      }
  }


  Info

  • @Composable: This annotation is used to mark a function as composable. Functions marked with @Composable can be used to describe part of a UI in Jetpack mpose. This allows you to build UI elements declaratively.

  • by: This is used for delegation in Kotlin. Here, it is used with remember and mutableStateOf to create a state variable.

  • remember: This composable function is used to remember a single object in a composable function. It retains state across recompositions.

  • mutableStateOf(""): This creates a mutable state initialized with an empty string. mutableStateOf is used to create state that Jetpack Compose can observe d react to changes

  • Column: This is a composable function that places its children in a vertical sequence.

  • modifier: This parameter allows you to modify the layout or behavior of a Composable.

  • Spacer: This composable function is used to create empty space in layouts.

  • TextField: This composable function creates an editable text input field.

  • onValueChange = { massEntered = it }: A lambda function that updates the massEntered state variable whenever the text in the text field changes.

  • lamdba: In Kotlin, a lambda is an anonymous function (a function without a name) that can be treated as a value. Lambdas are often used to pass functions as arguments to higher-order functions, which are functions that take other functions as parameters or return functions.

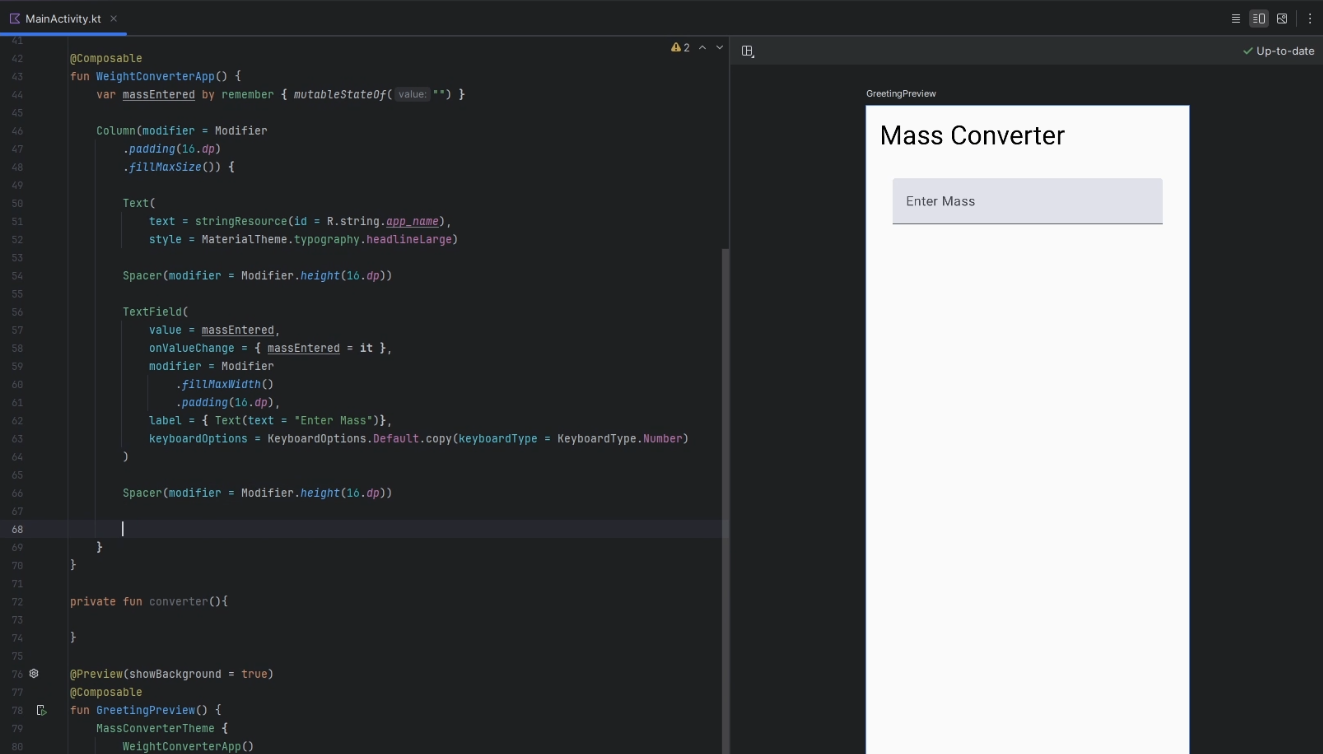

• Finish modifying the TextField so that only a number style keyboard is displayed on focus and give the field a hint/ghost text "Enter Mass"

  Code

  @Composable
  fun WeightConverterApp() {
      var massEntered by remember { mutableStateOf("") }

      Column(
          modifier = Modifier
              .padding(16.dp)
              .fillMaxSize()
      ) {
          Text(text = "Mass Converter", style = MaterialTheme.typography.headlineSmall)
          Spacer(modifier = Modifier.height(16.dp))

          TextField(
              value = massEntered,
              onValueChange = { massEntered = it },
              modifier = Modifier
                  .fillMaxWidth()
                  .padding(16.dp),
              label = { Text("Enter mass") },
              keyboardOptions = KeyboardOptions.Default.copy(keyboardType = KeyboardType.Number)
          )

          Spacer(modifier = Modifier.height(16.dp))
      }
  }


  Note

  • label - this is a parameter for the TextField composable in Jetpack Compose. It specifies a label for the text field.

  • { Text("Enter mass") }: This is a lambda expression that defines the content of the label. In this case, the label is a Text composable displaying the ring "Enter mass".

  • keyboardOptions: This is another parameter for the TextField composable. It specifies the behavior of the on-screen keyboard that appears when the text field ins focus.

  • KeyboardOptions.Default: This provides the default keyboard options.

  • .copy(keyboardType = KeyboardType.Number): This creates a copy of the default keyboard options, modifying the keyboardType to KeyboardType.Number.



MainActivity: RadioButtons

Video @ 10.21 - 17.11

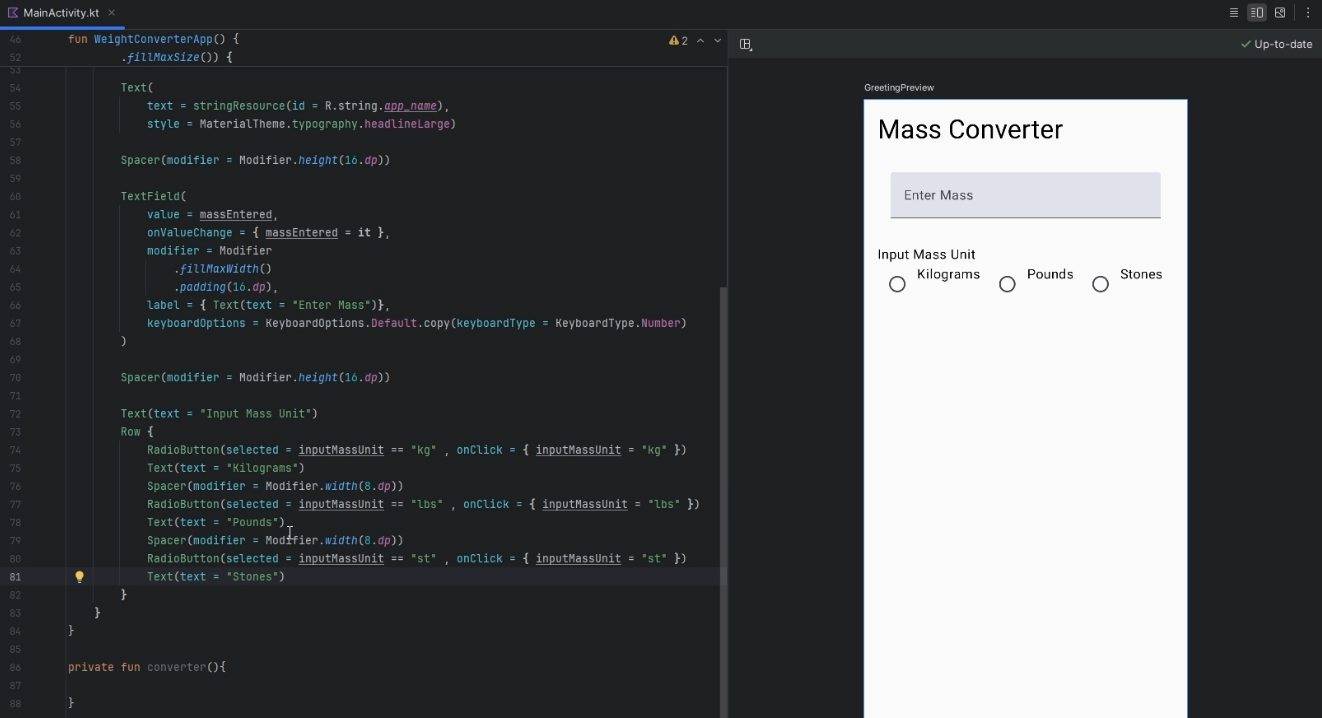

1. Creating InputMass RadioButtons:

• We now are going to use some RadioButtons that can be selected by the user to indicate their choices, after the TextField and Spacer add a Text Composable and a Row Composable with 3 RadioButtons, 3 Text and 2 Spacers:

  Code

  ...

  TextField(){...}

  Spacer(modifier = Modifier.height(16.dp))

  Text("Input Mass Unit")
  Row {
      RadioButton(
          selected = inputMassUnit == "kg",
          onClick = { inputMassUnit = "kg" })

      Text("Kilograms")

      Spacer(modifier = Modifier.width(8.dp))

      RadioButton(
          selected = inputMassUnit == "lbs",
          onClick = { inputMassUnit = "lbs" })

      Text("Pounds")

      Spacer(modifier = Modifier.width(8.dp))

      RadioButton(
          selected = inputMassUnit == "stone",
          onClick = { inputMassUnit = "stone" })

      Text("Stone")
  }

  Spacer(modifier = Modifier.height(16.dp))

  ...



• Also, note that the inputMassUnit needs to bound to the so that it stores data during recomposition process, add the line below where you create the massEntered variable, you could also add the outputMassUnit too:

  Code

  var inputMassUnit by remember { mutableStateOf("kg") }
  var outputMassUnit by remember { mutableStateOf("lbs") }


  Info

  • Row - This is a composable that arranges its children in a horizontal sequence.

  • RadioButton: This composable represents a radio button, which is a circular button that can be either selected or unselected. It is typically used in groups to low users to select one option from a set.

  • selected: This parameter determines whether the radio button is selected or not.

  • inputMassUnit == "kg": This expression checks if the current value of inputMassUnit is equal to "kg". If it is, the radio button will be shown as elected`.

  • onClick: This is a lambda function that gets executed when the radio button is clicked.

  • { inputMassUnit = "kg" }: This lambda sets the value of inputMassUnit to "kg" when the radio button is clicked. This means that clicking the radio button will update the state to indicate that "kg" is the selected unit.

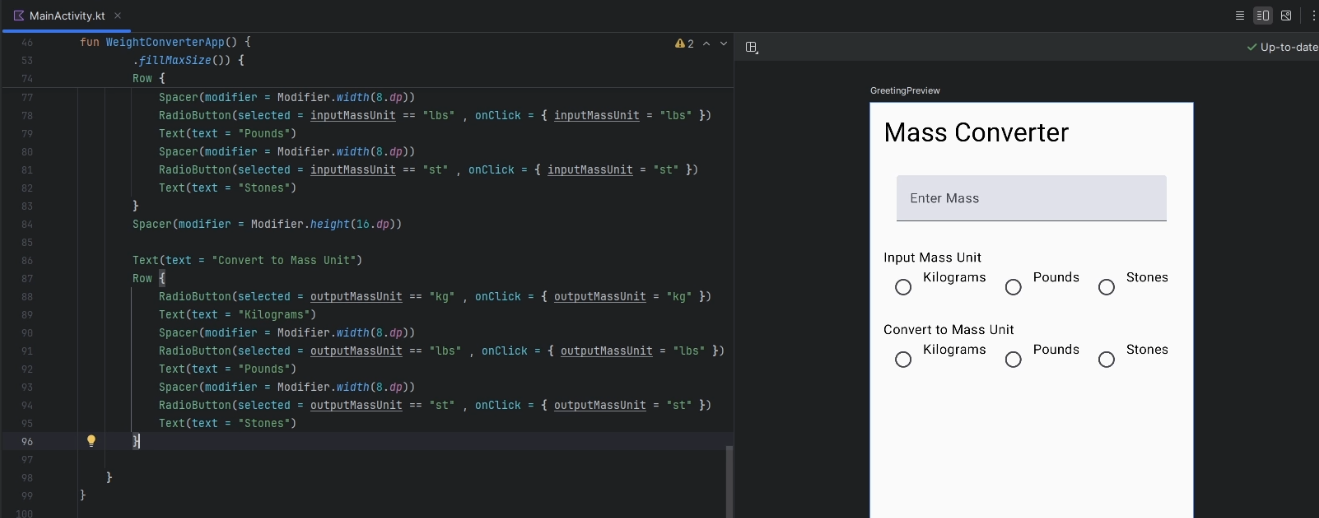

• Create a new Row that replicates the previous Row for outputMassUnit

  Code

  Row{...}

  Spacer(modifier = Modifier.height(16.dp))

  Text("Convert to Mass Unit")
  Row {
      RadioButton(
          selected = outputMassUnit == "kg",
          onClick = { outputMassUnit = "kg" })

      Text("Kilograms")

      Spacer(modifier = Modifier.width(8.dp))

      RadioButton(
          selected = outputMassUnit == "lbs",
          onClick = { outputMassUnit = "lbs" })
      Text("Pounds")

      Spacer(modifier = Modifier.width(8.dp))

      RadioButton(
          selected = outputMassUnit == "stone",
          onClick = { outputMassUnit = "stone" })

      Text("Stone")
  }




MainActivity: Button and Converter Function

Video @ 17.11 - 27.39

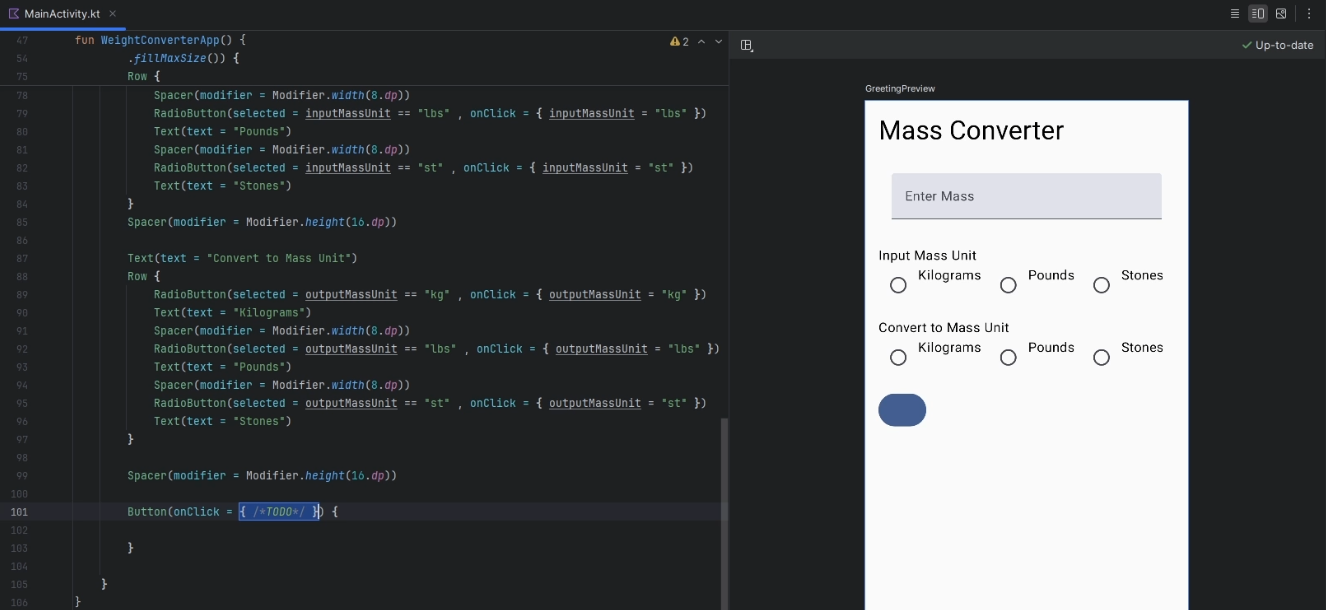

• Now we are going to use a Button Composable that invokes and onClick method to calcualte the user input and their selected RadioButton options. Underneath the last Row{...} create a new Spacer Composable and a Button Composable:

  Code

  Row{...}
  Spacer(modifier = Modifier.height(16.dp))

  Button(onClick = { /*TODO*/}) {

  }
  ...




• Navigate back up to where you defined the variables that are remembered across recompositon and define the following; var massEntered by remember { mutableStateOf("") } and var convertedValues by remember { mutableStateOf(arrayOf("","","")) }

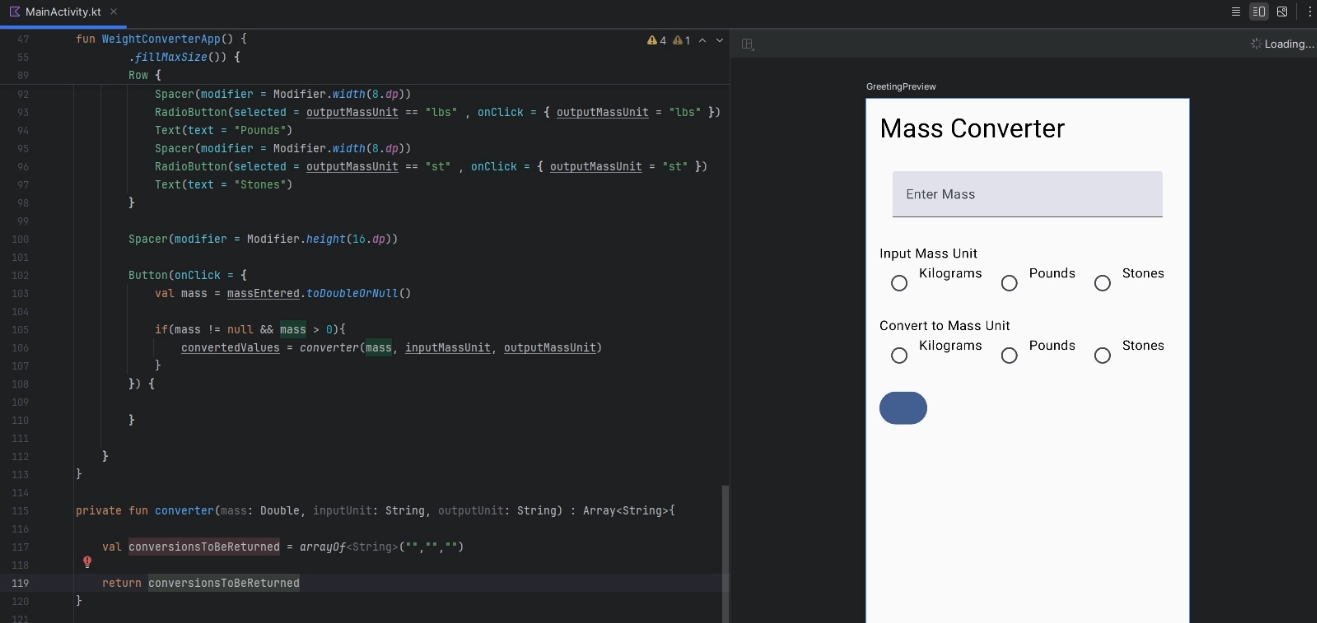

• Continue building the functionality of the Button and update the arguments field of the converter function where it is declared:

  Code

  Row{
      ...
      Button(
          onClick = {
              val mass = massEntered.toDoubleOrNull()

              if (mass != null && mass > 0) {
                  convertedValues = convertor(numberFormat,mass,
                                      inputMassUnit, outputMassUnit)
              }
          }
  }

  private fun convertor(numberFormat: NumberFormat, mass: Double, inputUnit: String,
                        outputUnit: String) : Array<String> {

      val conversionsToBeReturned = arrayOf<String>("","","")

      return conversionsToBeReturned
  }


  Info

  • onClick - This is a lambda function that gets executed when the button is clicked.

  • massEntered.toDoubleOrNull(): This function attempts to convert the string massEntered into a Double. If the conversion is not possible (e.g., if assEnteredis not a valid number), it returnsnull`.

  • mass != null: This checks if the conversion was successful.

  • mass > 0: This checks if the mass entered is greater than zero.

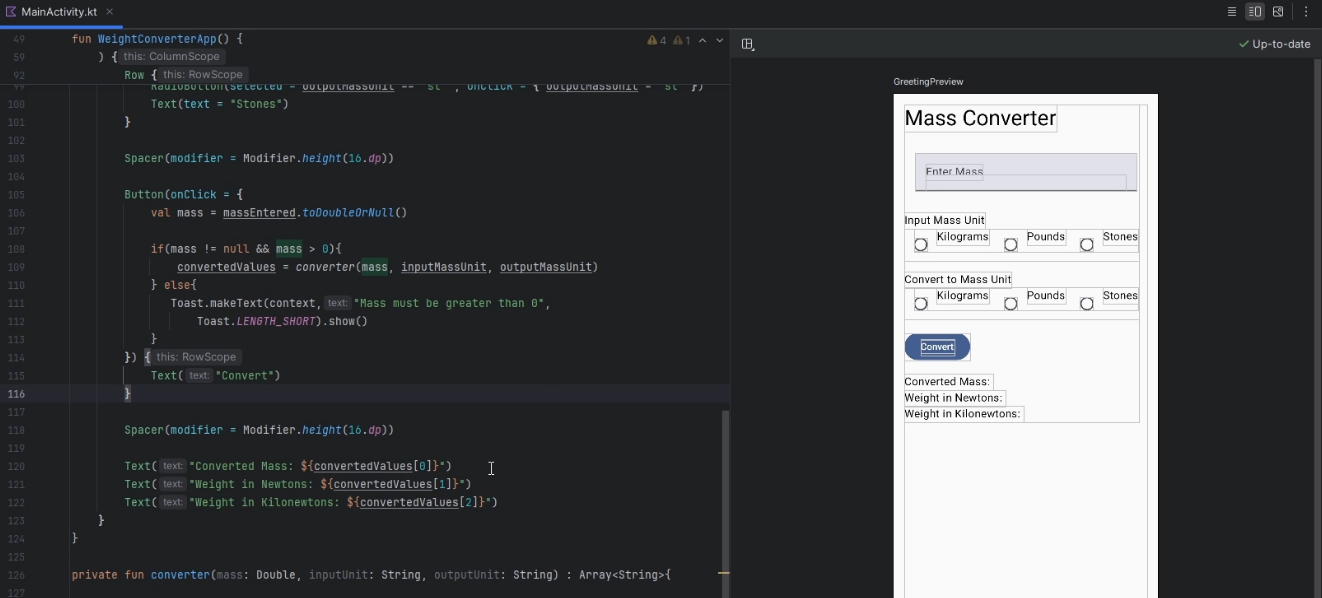

• Continuing with the conditions inside the Button, we will add an else to catch the inverse of the if and display at Toast Notification. We also going to add a Spacer after the Button and 3 Text Composables that will display the result of the converter function by referencing the respectively array index of the convertedValues variable:

  Code

  Button(onClick = {
      val mass = massEntered.toDoubleOrNull()

      if (mass != null && mass > 0) {
          convertedValues = convertor(numberFormat,mass, inputMassUnit, outputMassUnit)

      } else {
          Toast.makeText(context, "Mass must be greater than 0",
              Toast.LENGTH_LONG).show()
      }
  }) {
      Text("Convert")
  }

  Spacer(modifier = Modifier.height(16.dp))

  Text("Converted Mass: ${convertedValues[0]}")
  Text("Weight in Newtons: ${convertedValues[1]}")
  Text("Weight in Kilonewtons: ${convertedValues[2]}")
  }


• declare the context variable at the underneath the remembered variables.

  Code

  ...

  var massEntered by remember { mutableStateOf("") }
  var convertedValues by remember { mutableStateOf(arrayOf("","","")) }
  var inputMassUnit by remember { mutableStateOf("kg") }
  var outputMassUnit by remember { mutableStateOf("lbs") }

  var context =  LocalContext.current
  ...



  Info

  • else: This keyword is used to define a block of code that runs if the preceding if condition(s) is false. In this case, it runs when the mass is not eater than 0.

  • Toast.makeText: This function creates a Toast message, which is a small popup message that briefly appears on the screen.

  • context: This is the context in which the Toast should run. It is obtained from the LocalContext.current in a Compose function defined after remembered riables we declared.

  • Toast.LENGTH_LONG: This is the duration for which the Toast will be shown. Toast.LENGTH_LONG means it will be displayed for a long duration.

  • show(): This function call displays the Toast.

  • Text("Converted Mass: ${convertedValues[0]}") - Displays the first converted value, we use the ${} to reference variable that are are defined as collection, list and arrays etc



MainActivity: Converter Functionality

Video @ 27.39 - 43.24

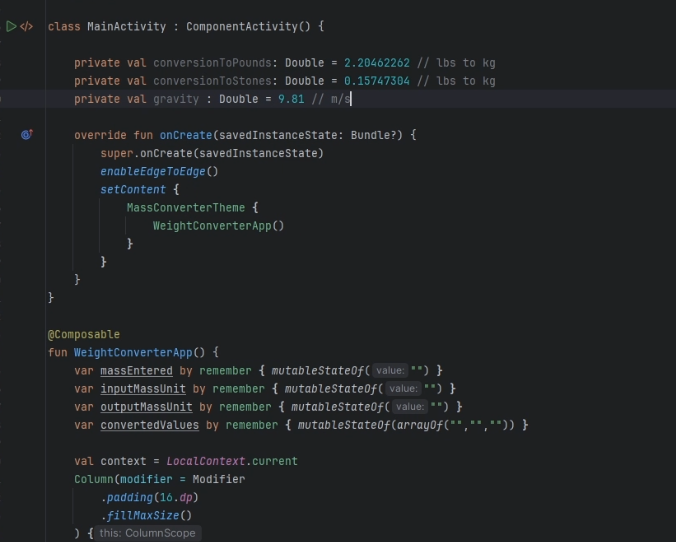

• Navigate to the top of the MainActivty() add the following variables that stored constant conversion values and the NumberFormat to the WeightConverterApp():

  Code

  class MainActivity : ComponentActivity() {

      private val conversionToPounds: Double = 2.20462262 // lbs to kg
      private val conversionToStones: Double = 0.15747304 // lbs to kg
      private val gravity : Double = 9.81 // m/s^2

      ...
          override fun onCreate(savedInstanceState: Bundle?) { ... }


      @Composable
      fun WeightConverterApp() {
          var massEntered by remember { mutableStateOf("") }
          ...

          val numberFormat = remember {
              NumberFormat.getInstance().apply {
                  maximumFractionDigits = 2
                  minimumFractionDigits = 2
              }
          }

      ```

  </div>
  </div>

  ![](./figures/mainActivity_8.png)



• Next go back Converter() and let's create the calculations to convert between different units

  Code

  private fun converter(numberFormat: NumberFormat, mass : Double,
                          inputUnit: String, outputUnit: String) : Array<String>{

      val conversionsToBeReturned = arrayOf<String>("","","")

      val massInKg = when (inputUnit) {
          "kg" -> mass
          "lbs" -> mass / conversionToPounds
          "st" -> mass / conversionToStones
          else -> 0.0
      }

      val converted = when (outputUnit){
          "kg" -> "$massInKg kg"
          "lbs" -> "${numberFormat.format(mass * conversionToPounds)} lbs"
          "st" -> "${numberFormat.format(mass * conversionToStones)} stone"
          else -> ""
      }

      conversionsToBeReturned[0] = converted
      conversionsToBeReturned[1] = "${numberFormat.format(massInKg * gravity)} N"
      conversionsToBeReturned[2] = "${numberFormat.format(massInKg * gravity / 1000)}  kN"

      return conversionsToBeReturned
  }



  Info

  • val massInKg - Declares a read-only variable that stores the mass converted to kilograms.

  • when (inputUnit) - Checks the value of the inputUnit variable and performs different actions based on its value.

  • "kg" - If the inputUnit is kilograms, it directly assigns the input mass to massInKg.

  • "lbs" - If the inputUnit is pounds, it converts the mass from pounds to kilograms by dividing it by conversionToPounds.

  • "st" - If the inputUnit is stones, it converts the mass from stones to kilograms by dividing it by conversionToStones.

  • else - For any other unit (or if inputUnit doesn't match any of the specified cases), it assigns 0.0 to massInKg.

  • when (outputUnit): Checks the value of the outputUnit variable and performs different actions based on its value.

  • "kg" - If the outputUnit is kilograms, it creates a string that includes the mass in kilograms (massInKg).

  • "lbs" - If the outputUnit is pounds, it converts the mass from kilograms to pounds by multiplying it by conversionToPounds and formats the result using mberFormat`. The formatted string includes the mass in pounds.

  • "st" - If the outputUnit is stones, it converts the mass from kilograms to stones by multiplying it by conversionToStones and formats the result using mberFormat`. The formatted string includes the mass in stones.

  • else - For any other unit (or if outputUnit doesn't match any of the specified cases), it assigns an empty string to converted.

  • Without the Formater:



  • With the Formater:

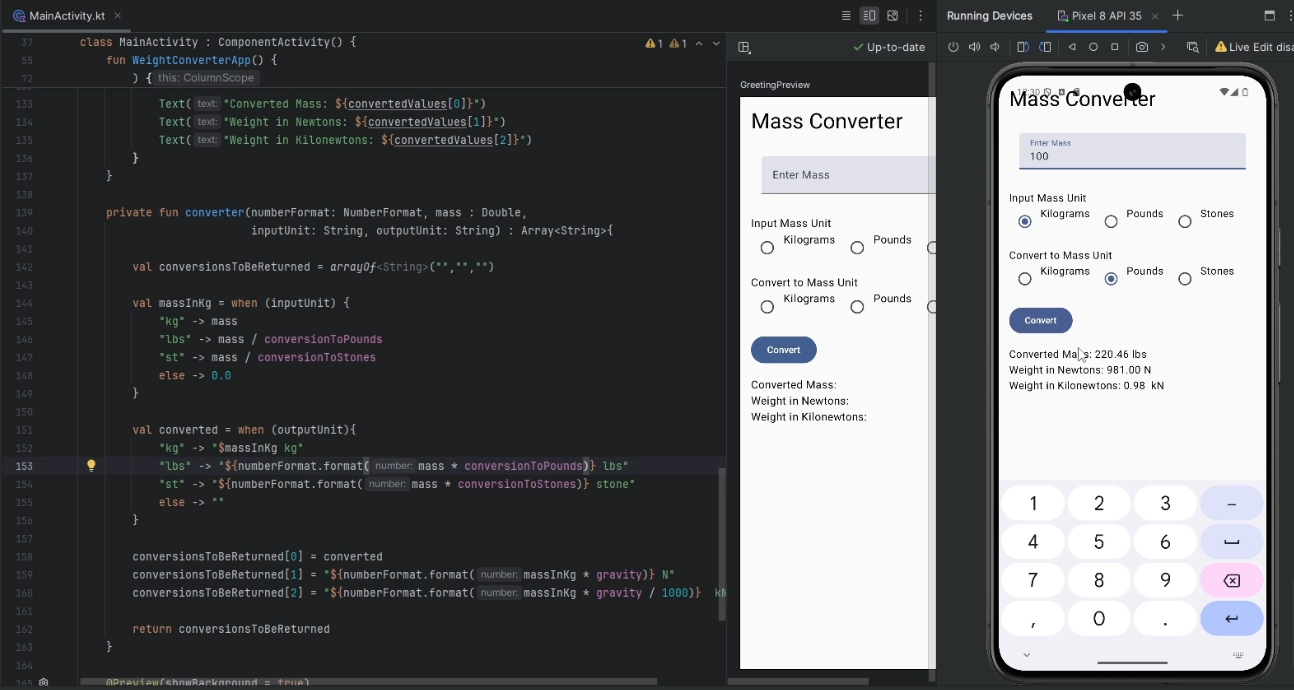

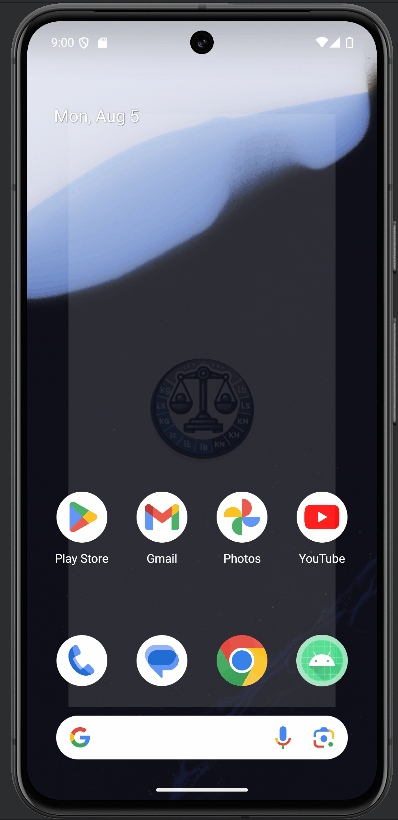

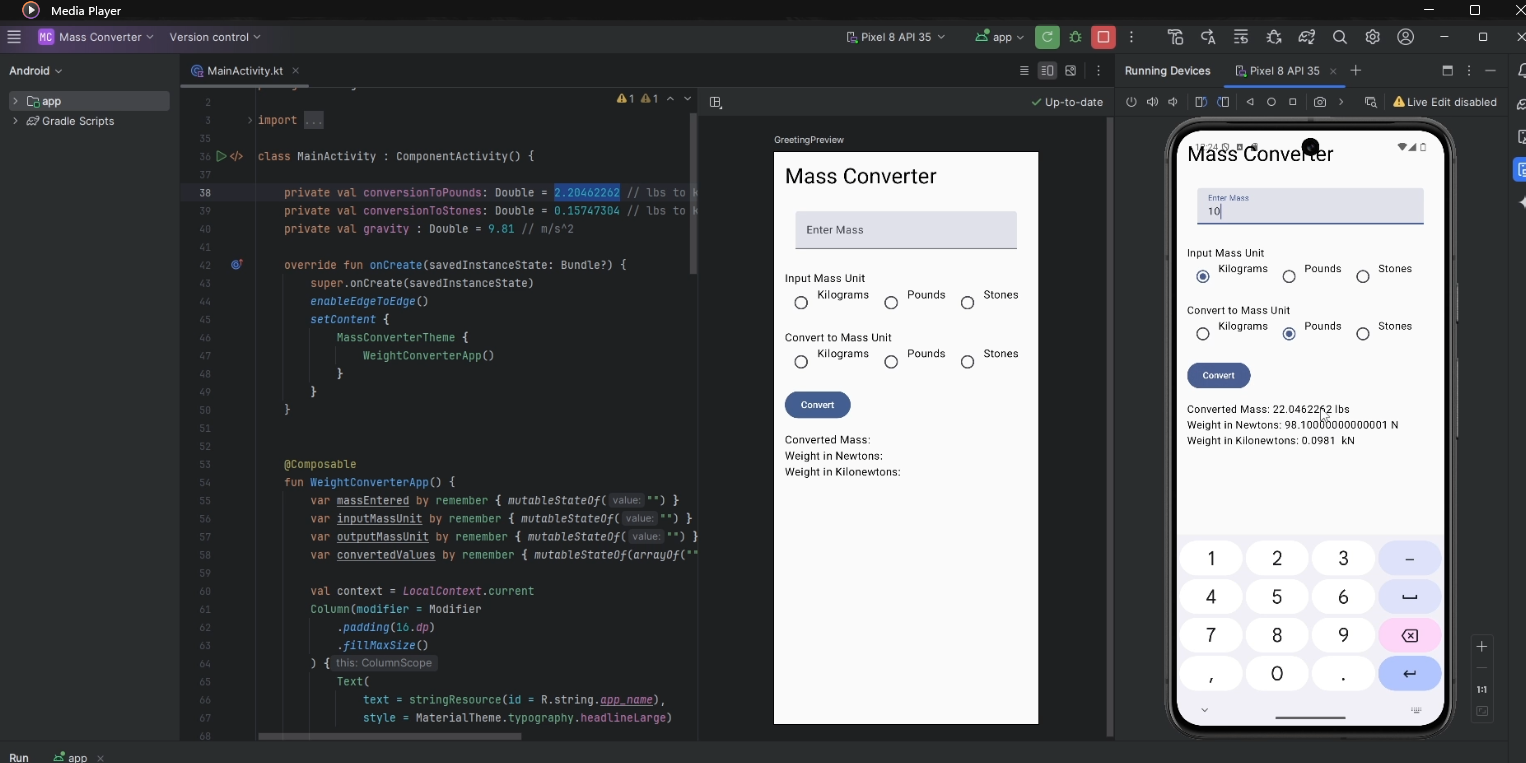

If you run the app you should now be able to reproduce the following:

package com.uog.massconverter

import android.os.Bundle
import android.widget.Toast
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.enableEdgeToEdge
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.Spacer
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.layout.padding
import androidx.compose.foundation.layout.width
import androidx.compose.foundation.text.KeyboardOptions
import androidx.compose.material3.Button
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.RadioButton
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Text
import androidx.compose.material3.TextField
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.setValue
import androidx.compose.ui.Modifier
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.res.stringResource
import androidx.compose.ui.text.input.KeyboardType
import androidx.compose.ui.tooling.preview.Preview
import androidx.compose.ui.unit.dp
import com.uog.massconverter.ui.theme.MassConverterTheme
import java.text.NumberFormat

class MainActivity : ComponentActivity() {

    private val conversionToPounds: Double = 2.20462262 // lbs to kg
    private val conversionToStones: Double = 0.15747304 // lbs to kg
    private val gravity : Double = 9.81 // m/s^2

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        enableEdgeToEdge()
        setContent {
            MassConverterTheme {
                WeightConverterApp()
            }
        }
    }


    @Composable
    fun WeightConverterApp() {
        var massEntered by remember { mutableStateOf("") }
        var inputMassUnit by remember { mutableStateOf("") }
        var outputMassUnit by remember { mutableStateOf("") }
        var convertedValues by remember { mutableStateOf(arrayOf("","","")) }

        val numberFormat = remember {
            NumberFormat.getInstance().apply {
                maximumFractionDigits = 2
                minimumFractionDigits = 2
            }
        }

        val context = LocalContext.current
        Column(modifier = Modifier
            .padding(24.dp)
            .fillMaxSize()
        ) {
            Text(
                text = stringResource(id = R.string.app_name),
                style = MaterialTheme.typography.headlineLarge)

            Spacer(modifier = Modifier.height(16.dp))

            TextField(
                value = massEntered,
                onValueChange = { massEntered = it },
                modifier = Modifier
                    .fillMaxWidth()
                    .padding(16.dp),
                label = { Text(text = "Enter Mass")},
                keyboardOptions = KeyboardOptions.Default.copy(keyboardType = KeyboardType.Number)
            )

            Spacer(modifier = Modifier.height(16.dp))

            Text(text = "Input Mass Unit")
            Row {
                RadioButton(selected = inputMassUnit == "kg" , onClick = { inputMassUnit = "kg" })
                Text(text = "Kilograms")
                Spacer(modifier = Modifier.width(8.dp))
                RadioButton(selected = inputMassUnit == "lbs" , onClick = { inputMassUnit = "lbs" })
                Text(text = "Pounds")
                Spacer(modifier = Modifier.width(8.dp))
                RadioButton(selected = inputMassUnit == "st" , onClick = { inputMassUnit = "st" })
                Text(text = "Stones")
            }
            Spacer(modifier = Modifier.height(16.dp))

            Text(text = "Convert to Mass Unit")
            Row {
                RadioButton(selected = outputMassUnit == "kg" , onClick = { outputMassUnit = "kg" })
                Text(text = "Kilograms")
                Spacer(modifier = Modifier.width(8.dp))
                RadioButton(selected = outputMassUnit == "lbs" , onClick = { outputMassUnit = "lbs" })
                Text(text = "Pounds")
                Spacer(modifier = Modifier.width(8.dp))
                RadioButton(selected = outputMassUnit == "st" , onClick = { outputMassUnit = "st" })
                Text(text = "Stones")
            }

            Spacer(modifier = Modifier.height(16.dp))

            Button(onClick = {
                val mass = massEntered.toDoubleOrNull()

                if(mass != null && mass > 0){
                    convertedValues = converter(numberFormat, mass, inputMassUnit, outputMassUnit)
                } else{
                    Toast.makeText(context,"Mass must be greater than 0",
                        Toast.LENGTH_SHORT).show()
                }
            }) {
                Text("Convert")
            }

            Spacer(modifier = Modifier.height(16.dp))

            Text("Converted Mass: ${convertedValues[0]}")
            Text("Weight in Newtons: ${convertedValues[1]}")
            Text("Weight in Kilonewtons: ${convertedValues[2]}")
        }
    }

    private fun converter(numberFormat: NumberFormat, mass : Double,
                          inputUnit: String, outputUnit: String) : Array<String>{

        val conversionsToBeReturned = arrayOf<String>("","","")

        val massInKg = when (inputUnit) {
            "kg" -> mass
            "lbs" -> mass / conversionToPounds
            "st" -> mass / conversionToStones
            else -> 0.0
        }

        val converted = when (outputUnit){
            "kg" -> "$massInKg kg"
            "lbs" -> "${numberFormat.format(mass * conversionToPounds)} lbs"
            "st" -> "${numberFormat.format(mass * conversionToStones)} stone"
            else -> ""
        }

        conversionsToBeReturned[0] = converted
        conversionsToBeReturned[1] = "${numberFormat.format(massInKg * gravity)} N"
        conversionsToBeReturned[2] = "${numberFormat.format(massInKg * gravity / 1000)}  kN"

        return conversionsToBeReturned
    }

    @Preview(showBackground = true)
    @Composable
    fun GreetingPreview() {
        MassConverterTheme {
            WeightConverterApp()
        }
    }

}

Continue Here....

For the exercises below, us the above lab as a reference.

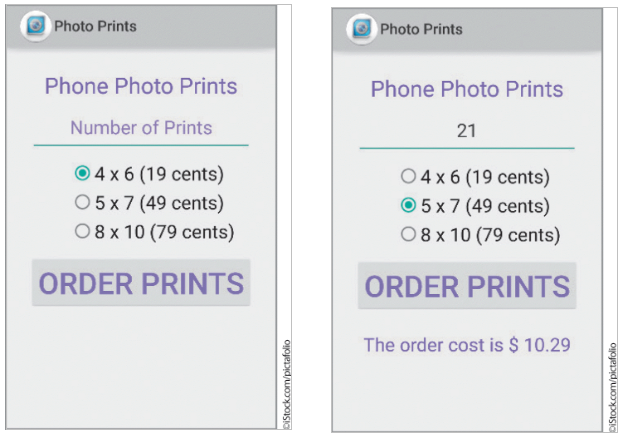

1. Phone Photo Prints App

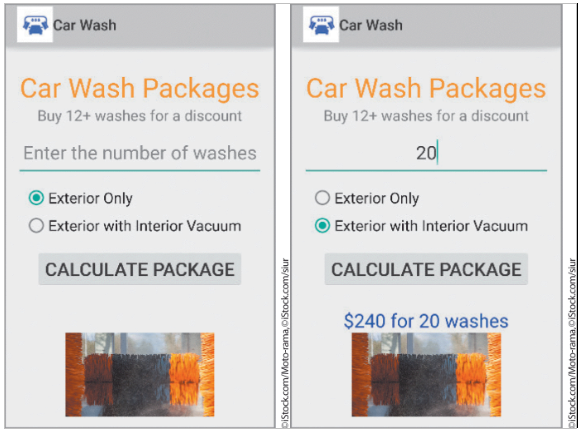

2. Car Wash App

3. Power Tool Rental App

4. Floor Tiling App
