2. Constants and paths

The first part of the module defines the paths and constants used by the ADC code:

const SYSFS_ADC_DIR: &str = "/sys/bus/iio/devices/iio:device0";
const SYSFS_ADC_ENABLE_PATH: &str = "/sys/bus/iio/devices/iio:device0/buffer/enable";
const SYSFS_ADC_LENGTH_PATH: &str = "/sys/bus/iio/devices/iio:device0/buffer/length";
const SYSFS_ADC_SCAN_DIR: &str = "/sys/bus/iio/devices/iio:device0/scan_elements";
const IIO_DEVICE_PATH: &str = "/dev/iio:device0";

These correspond directly to the paths used in the C implementation.

The distinction is important:

in_voltageX_raw files are used for direct one-shot reads
scan_elements selects which channels are included in buffered sampling
buffer/length controls the number of samples stored in the kernel buffer
buffer/enable starts or stops the kernel buffer
/dev/iio:device0 is the character device used to read buffered sample data

So the Rust code is not inventing a new mechanism. It is wrapping the same Linux IIO interface in safer Rust functions.

The voltage constants are:

const REF_VOLTAGE: f32 = 1.8;
const MAX_ADC: f32 = 4096.0;

Recall that the BeagleBone Black ADC is a 12-bit ADC, so the raw values represent the range from 0 to 4095. The conversion used later is:

voltage = adc_value × 1.8 / 4096

3. Representing ADC channels

In the C version, ADC channels are passed as integers:

adc_get_value(0, &adc_reading);

In Rust, we introduce an enum:

#[derive(Debug, Clone, Copy)]
pub enum AdcPin {
    A0,
    A1,
    A2,
    A3,
    A4,
    A5,
    A6,
}

This makes the code more descriptive:

adc::read_raw(AdcPin::A0)

rather than:

adc::get_value(0)

An enum restricts the allowed values. With raw integers, a caller could accidentally write:

adc::get_value(99)

With AdcPin, only valid channels can be named.

Rust enums: https://doc.rust-lang.org/book/ch06-00-enums.html
match: https://doc.rust-lang.org/book/ch06-02-match.html

4. Validating ADC channels

The function:

fn validate_adc_pin(adc_pin: u8) -> BbbResult<()>

checks whether the channel number is valid.

if adc_pin > MAX_ADC_PIN {
    return Err(BbbError::InvalidValue(format!(
        "invalid ADC pin {adc_pin}; expected 0..=6"
    )));
}

This is the Rust equivalent of defensive checks that are often missing in C code.

BbbResult<()> means the function does not return a useful value when successful. It only tells us whether validation passed or failed:

Ok(())  → valid
Err(..) → invalid

Result: https://doc.rust-lang.org/book/ch09-02-recoverable-errors-with-result.html
Unit type (): https://doc.rust-lang.org/std/primitive.unit.html

5. Building ADC file paths

The C code builds paths using snprintf:

snprintf(buf, sizeof(buf), SYSFS_ADC_DIR "/in_voltage%d_raw", adcPin);

The Rust code builds paths using PathBuf:

fn adc_raw_path(adc_pin: u8) -> BbbResult<PathBuf> {
    validate_adc_pin(adc_pin)?;

    let mut path = PathBuf::from(SYSFS_ADC_DIR);
    path.push(format!("in_voltage{adc_pin}_raw"));
    Ok(path)
}

This produces paths such as:

/sys/bus/iio/devices/iio:device0/in_voltage0_raw
/sys/bus/iio/devices/iio:device0/in_voltage1_raw

PathBuf is Rust’s owned, growable path type. It is preferable to manually concatenating strings because it represents filesystem paths explicitly.

PathBuf: https://doc.rust-lang.org/std/path/struct.PathBuf.html

6. One-shot ADC reads

The C function:

int adc_get_value(unsigned int adcPin, unsigned int *value)

opens:

/sys/bus/iio/devices/iio:device0/in_voltageX_raw

reads the text value, converts it to an integer, then returns it through a pointer.

The Rust equivalent is:

pub fn get_value(adc_pin: u8) -> BbbResult<u32> {
    sysfs::read_u32(adc_raw_path(adc_pin)?)
}

This reuses the sysfs.rs helper we created earlier.

The Rust-friendly wrapper is:

pub fn read_raw(pin: AdcPin) -> BbbResult<u32> {
    get_value(pin.index())
}

Both are useful:

get_value(u8) mirrors the C library
read_raw(AdcPin) is the more Rust-like interface

7. File descriptors and Rust ownership

The C implementation includes:

int adc_fd_open(unsigned int adcPin);
int adc_fd_close(unsigned int fd);

In Rust this becomes:

pub fn fd_open(adc_pin: u8) -> BbbResult<File> {
    Ok(File::open(adc_raw_path(adc_pin)?)?)
}

pub fn fd_close(file: File) -> BbbResult<()> {
    drop(file);
    Ok(())
}

In C, file descriptors must be closed manually with close(fd). In Rust, File closes automatically when it goes out of scope.

This is RAII:

Resource Acquisition Is Initialisation

A resource is acquired when the object is created, and released when the object is dropped.

File: https://doc.rust-lang.org/std/fs/struct.File.html
Drop: https://doc.rust-lang.org/std/ops/trait.Drop.html

8. Enabling channels and buffers

For continuous sampling, the kernel needs to know:

which ADC channel to scan
how large the buffer should be
whether the buffer is enabled

The Rust functions mirror the C functions:

pub fn enable_channel(adc_pin: u8) -> BbbResult<()> {
    sysfs::write_string(adc_scan_enable_path(adc_pin)?, "1")
}

pub fn disable_channel(adc_pin: u8) -> BbbResult<()> {
    sysfs::write_string(adc_scan_enable_path(adc_pin)?, "0")
}

pub fn enable_buffer() -> BbbResult<()> {
    sysfs::write_string(SYSFS_ADC_ENABLE_PATH, "1")
}

pub fn disable_buffer() -> BbbResult<()> {
    sysfs::write_string(SYSFS_ADC_ENABLE_PATH, "0")
}

pub fn set_buffer_length(len: u32) -> BbbResult<()> {
    sysfs::write_u32(SYSFS_ADC_LENGTH_PATH, len)
}

These correspond to terminal commands such as:

echo 1 > /sys/bus/iio/devices/iio:device0/scan_elements/in_voltage0_en
echo 100 > /sys/bus/iio/devices/iio:device0/buffer/length
echo 1 > /sys/bus/iio/devices/iio:device0/buffer/enable

All of these operations are file writes, so the ADC module reuses sysfs::write_string(...) and sysfs::write_u32(...).

9. Converting raw ADC values to voltage

The C function was:

int adc_to_voltage(unsigned adcValue, float *voltage) {
    *voltage = (((float)adcValue * REFVOLTAGE) / (float)MAXADC);
    return 0;
}

The Rust version intentionally follows the same style:

pub fn to_voltage(adc_value: u32, voltage: &mut f32) -> BbbResult<()> {
    if adc_value as f32 > MAX_ADC {
        return Err(BbbError::InvalidValue(format!(
            "ADC value {adc_value} exceeds expected maximum {MAX_ADC}"
        )));
    }

    *voltage = (adc_value as f32 * REF_VOLTAGE) / MAX_ADC;

    Ok(())
}

C uses:

float *voltage

Rust uses:

&mut f32

They serve a similar role: the function writes the result into a variable owned by the caller. However, Rust’s mutable reference is safer because it cannot be null and is checked by the borrow checker.

References and borrowing: https://doc.rust-lang.org/book/ch04-02-references-and-borrowing.html

10. Reading buffered samples

The one-shot raw files return text:

in_voltage0_raw → "1234\n"

The buffered IIO character device returns binary sample data through:

/dev/iio:device0

That is why the Rust code has a separate function:

fn read_buffer_sample(file: &mut File) -> BbbResult<u32> {
    let mut buf = [0u8; 2];

    file.read_exact(&mut buf)?;

    Ok(u16::from_le_bytes(buf) as u32)
}

The ADC scan type is typically:

le:u12/16>>0

This means:

le → little endian
u → unsigned
12 → 12 useful bits
16 → stored in 16 bits
>>0 → no shift required

So each buffered sample is read as two bytes and converted from little-endian bytes.

Read::read_exact: https://doc.rust-lang.org/std/io/trait.Read.html#method.read_exact
u16::from_le_bytes: https://doc.rust-lang.org/std/primitive.u16.html#method.from_le_bytes

11. The `BufferedAdc` struct

The struct:

pub struct BufferedAdc {
    file: File,
    pin: AdcPin,
}

represents an active buffered ADC stream.

It owns:

the open /dev/iio:device0 file
the selected ADC channel

Opening a buffered ADC performs the setup sequence:

disable buffer
disable all channels
enable selected channel
set buffer length
enable buffer
open /dev/iio:device0
return BufferedAdc

Most IIO buffer settings can only be changed while the buffer is disabled. That is why the code begins with:

let _ = disable_buffer();

Only one ADC channel is enabled at a time in this first implementation, so each sample read from /dev/iio:device0 corresponds to the selected channel.

The method:

pub fn read_raw(&mut self) -> BbbResult<u32>

needs &mut self because reading changes the file’s internal state.

12. Cleanup with `Drop`

The Rust code includes:

impl Drop for BufferedAdc {
    fn drop(&mut self) {
        let _ = disable_buffer();

        for ch in 0..=MAX_ADC_PIN {
            let _ = disable_channel(ch);
        }
    }
}

This is a major Rust improvement over the C version.

In C, the programmer must remember to call cleanup functions:

disable_channel(adcPin);
disable_buffer();

In Rust, cleanup happens automatically when BufferedAdc goes out of scope.

Drop::drop cannot return a Result, so cleanup is best-effort. That is why the code uses:

let _ = disable_buffer();

Drop: https://doc.rust-lang.org/std/ops/trait.Drop.html

13. `get_buffer(...)`

The function:

pub fn get_buffer(adc_pin: u8) -> BbbResult<u32>

is kept as a C-style convenience wrapper.

It:

validates the channel
maps the channel number to AdcPin
opens a temporary buffered ADC stream
reads one sample
drops the stream

For continuous reading, this is not the preferred interface.

The better approach is:

let mut adc = BufferedAdc::open(AdcPin::A0, 16)?;

loop {
    let raw = adc.read_raw()?;
}

This avoids repeatedly enabling/disabling the buffer.

Now we can build:
Terminal
```
cargo build
```

14. Example: simple ADC read

Once you have rebuilt bbi_crate in the previous section, you can now create examples/adc_read.rs to put it in.

Code: examples/adc_read.rs [17 lines]

use std::thread;
use std::time::Duration;

use bbb_io::adc::{self, AdcPin};

fn main() -> bbb_io::BbbResult<()> {
    loop {
        let raw = adc::read_raw(AdcPin::A0)?;

        let mut volts = 0.0;
        adc::to_voltage(raw, &mut volts)?;

        println!("AIN0: raw={raw}, voltage={volts:.3} V");

        thread::sleep(Duration::from_millis(500));
    }
}

Explanation

This example reads from AIN0 in one-shot mode.

let raw = adc::read_raw(AdcPin::A0)?;

This reads:

/sys/bus/iio/devices/iio:device0/in_voltage0_raw

Then:

let mut volts = 0.0;
adc::to_voltage(raw, &mut volts)?;

converts the raw ADC value into a voltage.

The delay slows the loop so the terminal output remains readable.

Compile it:

Terminal

rustc examples/adc_read.rs \
--edition=2021 \
-L target/debug \
--extern bbb_io=target/debug/libbbb_io.rlib \
-o adc_read

Build the circuit like this:

Figure: Active High LED cirucit

Danger

The BeagleBone Black ADC input range is 0 V to 1.8 V.

Do not connect 3.3 V directly to an ADC input pin.

If using a 3.3 V source, use a voltage divider or a safe external 1.8 V reference.

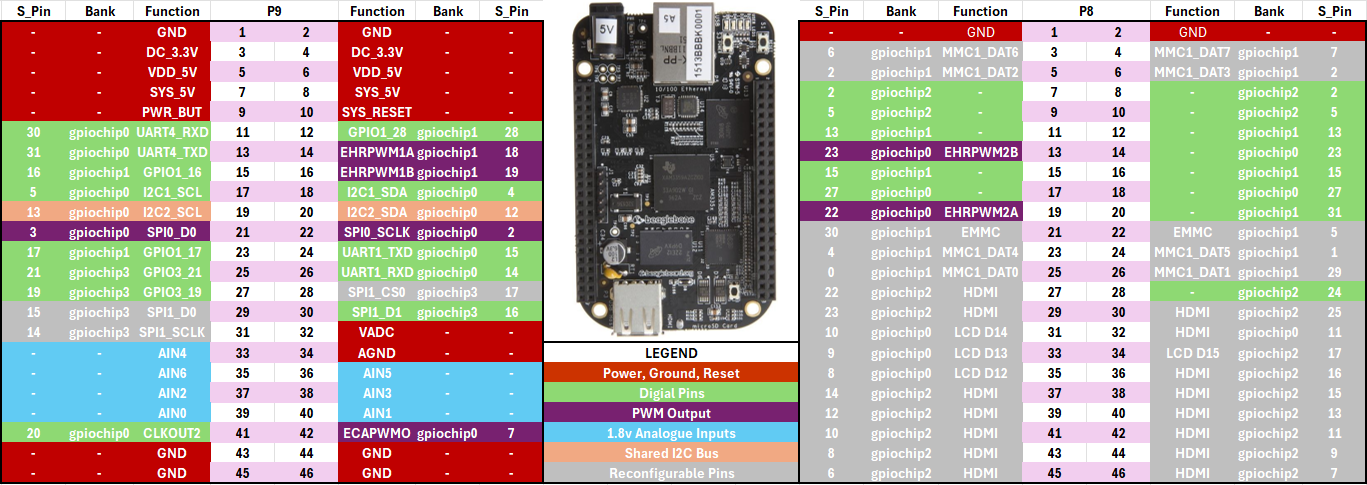

As a reminder here is the bbb headers map
Run it:
Terminal
```
./adc_read
```
